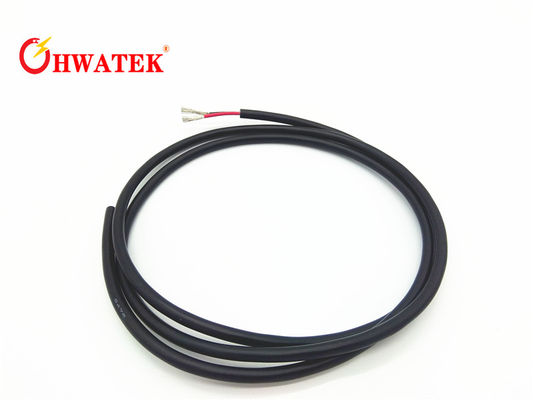

TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines

China TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines supplier
TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines supplier TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines supplier TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines supplier

Large Image :  TPE / TPEE Insulation Flexible Control Electrical Wire Halogen Free For Production Lines

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Flexible Cable,meter marking,halogen-free, oil resistant,Shield, PUR jacketed.

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Flexible Cable,meter Marking,halogen-free, Oil Resistant,Shield, PUR Jacketed. Size: 46AWG MIN
Conductor: Stranded, Tinned Or Bare Copper Core Number: Multiple-core
Standard: UL758,UL1581, UL2556, IEC60228 CL5 Insulation Material: TPE, TPEE
Shield Material: Bare Or Tinned Copper Braid Or Spiral And AL-mylar Sheath Material: PUR
Application: Used As Measuring, Monitoring And Control Cables In Tool Machinery, Conveyor Belts, Production Lines, In Plant, In Air-conditioning, In Foundries And Steel Mills. Rated Voltage: 300V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2,IEC60332-1-3
Free Sample: YES

Flexible Cable,meter marking,halogen-free, oil resistant,Shield, PUR jacketed.



Construction

Conductor : stranded, tinned or bare copper
Insulation: PP, TPEE

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket:PUR

Application: Used as measuring, monitoring and control cables in tool machinery, conveyor belts, production lines, in plant, in air-conditioning, in foundries and steel mills.



Standards
International: UL758 , UL1581, UL2556, IEC60228

RoHS,REACH Compliant,



Technical data
Rated voltage:300V

Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:AC 2.0kV/1min





Properties

Effectively resist electromaganetic interference

Excellent insulation performance

Extensively oil resistant

Flexible

LOW Temperature

Halogen-free



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
