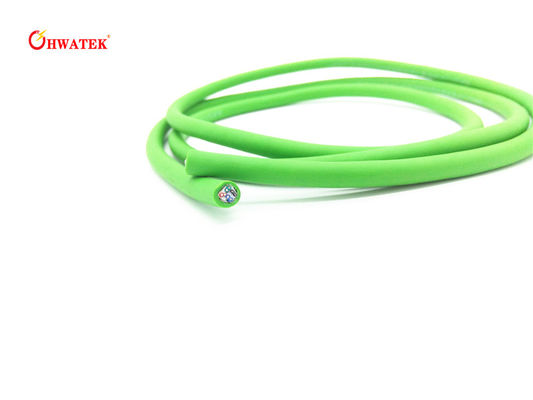

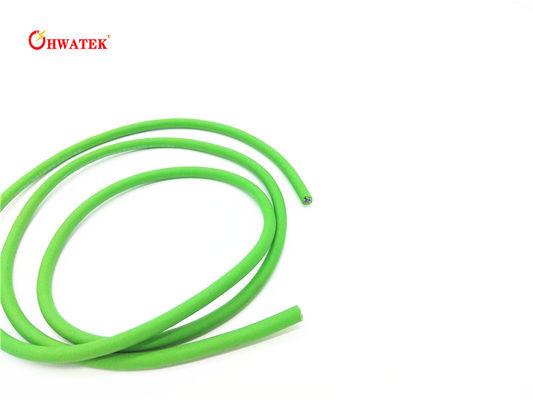

Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant

Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant
Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant

Large Image :  Copper Stranded High Flexible Electrical Wire PVC Insulated Oil Resistant

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Flexible Cable, meter marking, oil resistant,UV resistant, PVCjacketed.
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Flexible Cable, Meter Marking,oil Resistant,UV Resistant, PVCjacketed. Size: 46AWG MIN
Conductor: Stranded, Tinned Or Bare Copper Core Number: Multiple-core
Standard: UL758,UL1581, UL2556, IEC60228 CL5 Insulation Material: PVC,SRPVC,PP, TPEE
Sheath Material: PVC Application: For Fixed Installation Or Flexible Application, With Free Movements Without Forcing Which Do Not Constantly Recur And Without Tensile Stress, For High Mechanical Strain
Rated Voltage: 300V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2,IEC60332-1-3 Free Sample: YES
High Light:

flexible control cable

,

flexible electrical cable

Flexible Cable, meter marking,oil resistant,UV resistant, PVCjacketed.



Construction

Conductor : stranded, tinned or bare copper
Insulation:PVC,SRPVC, PE,TPEE

Jacket: PVC

Application: For fixed installation or flexible application, with free movements without forcing which do not constantly recur and without tensile stress, for high mechanical strain



Standards
International: UL758 , UL1581, UL2556,IEC60228

RoHS,REACH Compliant,



Technical data
Rated voltage:300V

Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:AC 2.0kV/1min





Properties

Excellent insulation performance

Extensively oil resistant

Flexible

Low Temperature

UV resistant



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
