Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation

China Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation supplier
Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation supplier Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation supplier Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation supplier

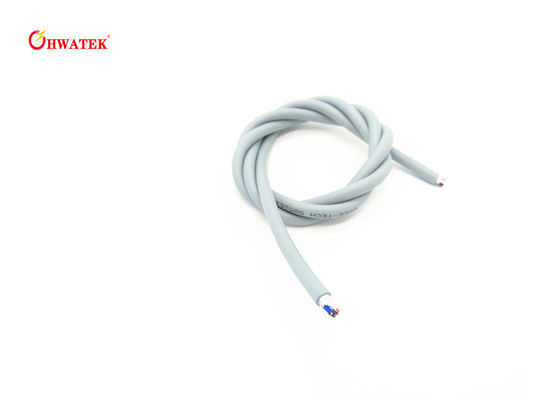

Large Image :  Electrical Industrial Flexible Cable Multi Core UV Resistant PP / TPEE Insulation

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Flexible Cable,halogen-free, oil resistant,UV Resistant, 1000V, PUR jacketed.

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: Flexible Cable,halogen-free, Oil Resistant,UV Resistant, 1000V, PUR Jacketed. Size: 36AWG MIN
Conductor: Stranded, Tinned Or Bare Copper Core Number: Multiple-core
Standard: UL758 AWM STYLE 20940,UL1581, UL2556, IEC60228 CL5 Insulation Material: PP, TPEE
Sheath Material: PUR Rated Voltage: 1000V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2,IEC60332-1-3
Free Sample: YES

Flexible Cable,halogen-free, oil resistant,UV Resistant, 1000V, PUR jacketed.



Construction

Conductor : stranded, tinned or bare copper
Insulation: PP, TPEE

Jacket:PUR

Application: For fixed installation or flexible application, with free movements without forcing which do not constantly recur and without tensile stress, for high mechanical strain



Standards
International:UL758 AWM STYLE 20940,UL1581, UL2556, IEC60228 CL5

RoHS,REACH Compliant,

Application:For fixed installation or flexible application, with free movements without forcing which do not constantly recur and without tensile stress, for high mechanical strain





Technical data
Rated voltage:1000V

Rated  Temperature:-40-80

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:AC 3.5kV/1min





Properties

Excellent insulation performance

Extensively oil resistant

Flexible

LOW Temperature

Halogen-free

UV resistant

High voltage



Specifications

Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
