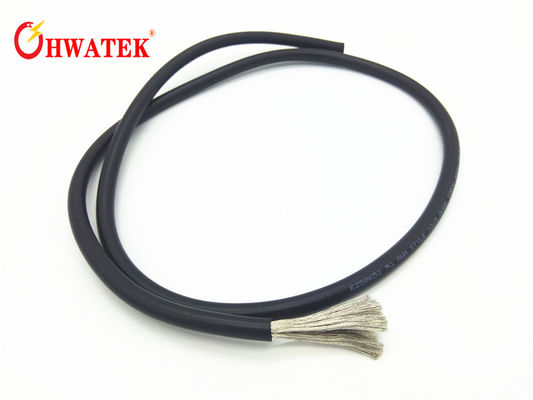

Flexible PVC Insulated Single Core Wire / PUR Sheath Cable 80 ℃ 1000V Scratch Proof

Flexible PVC Insulated Single Core Wire / PUR Sheath Cable 80 ℃ 1000V Scratch Proof
Flexible PVC Insulated Single Core Wire / PUR Sheath Cable 80 ℃ 1000V Scratch Proof Flexible PVC Insulated Single Core Wire / PUR Sheath Cable 80 ℃ 1000V Scratch Proof

Large Image :  Flexible PVC Insulated Single Core Wire / PUR Sheath Cable 80 ℃ 1000V Scratch Proof

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: High Flexible Single core PVC insulation,PUR Sheath cable,80 ℃, 1000V

Payment & Shipping Terms:

Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: High Flexible Single Core PVC Insulation,PUR Sheath Cable,80 ℃, 1000V Size: 30AWG - 4/0AWG
Conductor: Stranded, Tinned Or Bare Copper, IEC60228 CL5 Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: Special PVC
Sheath Material: PUR Application: For Use In And On Mobile Equipment,For Measuring Assemblies In Technical Training Sessions, Education And Electric Laboratories
Rated Voltage: 1000V Temperature: -40~80℃
Flame: FT1,FT2,IEC600332-1-3 Free Sample: YES
High Light:

single core copper wire

,

single core insulated wire

High Flexible Single core PVC insulation,PUR Sheath cable,80 ℃, 1000V



Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:Special PVC

Sheath:PUR



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:1000 V
Rated  Temperature:-40~80℃

Flame: IEC600332-1-3, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 3.5kV/1min





Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø



Properties

Halogen-free

Flexible at low temperatures up to -40°C

Resistant against pressure

Overroll steady

Cut and scratchproof



Certificates



UL, CUL, CE
