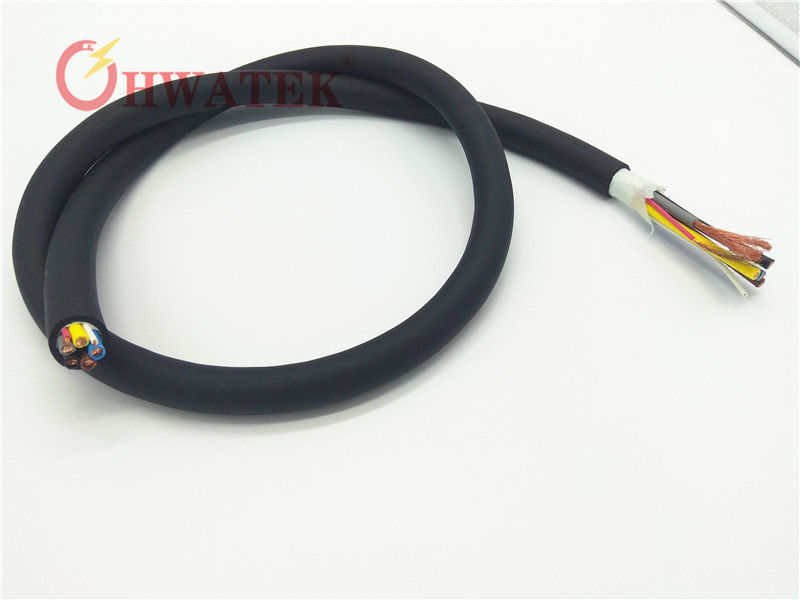

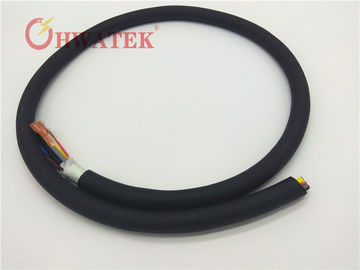

EV-RS90S90 EV Charging Cable AC TPE Sheath , Flexible Electric Car Charging Cable

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

EV-RS90S90 EV Charging Cable AC TPE Sheath , Flexible Electric Car Charging Cable

China EV-RS90S90 EV Charging Cable AC TPE Sheath , Flexible Electric Car Charging Cable supplier

Large Image :  EV-RS90S90 EV Charging Cable AC TPE Sheath , Flexible Electric Car Charging Cable

Product Details:

Place of Origin: China
Brand Name: HWATEK
Certification: RoHS , CQC ,DEKRA, TS16949
Model Number: EV Cable , EV-RS90S90 , electric vehicles during the charging process(AC), DEKRA and CQC Certified

Payment & Shipping Terms:

Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton / pallet
Delivery Time: 2-3 W
Payment Terms: T/T
Detailed Product Description
Conductor: Stranded Tinned Or Bare Copper, IEC60228 CLASS6 Insulation: Thermoplastic Elastomer
Assembly: 10~70(2~5cores)+0.5~0.75(P)(1~10cores) Sheath: TPE

EV Cable , EV-RS90S90 , electric vehicles during the charging process(AC), DEKRA and CQC Certified





Advantages

a. High-flexible capable of being bent.

b .Oil resistant

c. UV resistant

d: High-flame

e: Moisture-proof



Application Range

a. Connection wire between EV AC charging equipment  .

b.EV AC Charging station, AC Charging pile.



Construction

Conductor : stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer

Assembly:10~70(2~5cores)+0.5~0.75P)(1~10cores)

Non-woven wrap

Sheath:TPE



Application standard

CQC1103~1105-2015

RoHS,REACH Compliant



Technical data
Rated voltage:450/750V AC

Rated Temperature:-40℃-90℃

Flame:IEC60332-1-3, FT1, FT2

Voltage withstand test:

Power wire:1.0~70mm2:DC 2.5kV/15min

Signal wire:0.5~0.75mm2P :DC 1.5kV/15min
