Single Core Bare Copper Conductor Automotive Electrical Cable PVC Insulation

Single Core Bare Copper Conductor Automotive Electrical Cable PVC Insulation
Single Core Bare Copper Conductor Automotive Electrical Cable PVC Insulation

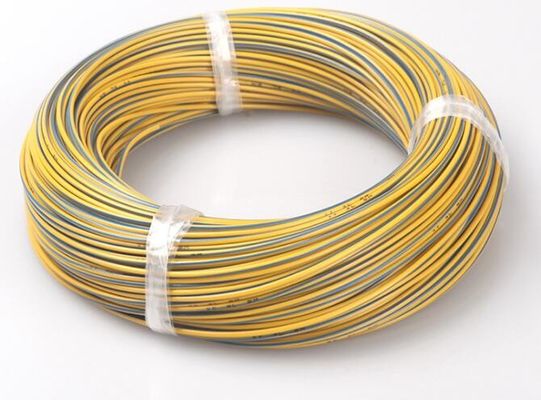

Large Image :  Single Core Bare Copper Conductor Automotive Electrical Cable PVC Insulation

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: ROHS, REACH,TS16949
Model Number: FLRY-B
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Supply Ability: 3000KM Per month
Detailed Product Description
Size: 0.35-6.0mm2 Conductor: Stranded Tinned Or Bare Copper Conductor
Core Number: 1core Standard: DIN 72551-6/1996
Insulation Material: PVC Application: For Internal Wiring Of Automobile
Rated Voltage: 50V Temperature: 80℃
High Light:

Bare Copper Conductor Automotive Electrical Cable

,

PVC Insulation Automotive Electrical Cable

,

PVC Insulation Automotive Cable Wire

FLRY-B Single Core Automotive Electrical Cable PVC Insulation Tinned / Bare Copper Conductor

Application: For internal wiring of automobile

Application standard: DIN 72551-6/1996

Product character:

Standard thickness,easily strip and cut

Oil and heat resistance, UV resistance, anti-abrasion, high mechanical strength and good flexibility

Constructure:

  • Stranded tinned or bare copper conductor 0.35-6.0mm2
  • PVC insulation

Technical parameter:

Rated temperature :80℃

Rated Voltage: 50V

Product Number. Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km

  NOM. Area NO./mm

Nom. Thickness

mm

Nom. Dia.

mm


HTFLRY-B0001 0.35 12/0.21 0.20 1.40 54.5
HTFLRY-B0002 0.5 16/0.21 0.22 1.60 38.2
HTFLRY-B0003 0.75 24/0.21 0.24 1.90 25.4
HTFLRY-B0004 1.0 32/0.21 0.24 2.10 19.1
HTFLRY-B0005 1.5 30/0.26 0.24 2.40 13.0
HTFLRY-B0006 2.5 50/0.26 0.28 3.00 7.8
HTFLRY-B0007 4.0 56/0.31 0.32 3.70 4.8
HTFLRY-B0008 6.0 84/0.31 0.32 4.30 3.2
