HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper, Tinned Copper, Silver Plated Copper | Insulation: | FEP And ETFE |
|---|---|---|---|
| Jacket: | TPU | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 100V | Temperature: | 80℃ |
| HWATEK: | HT2202936 | ||
| High Light: | ETFE insulation TPU Jacket WIRE,34 DC TPU Jacket WIRE,ETFE insulation Medical Device Cables |
||

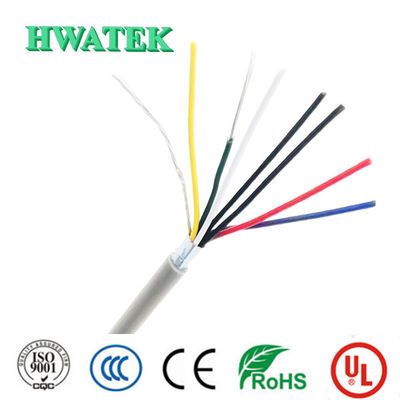

32 Coax x 34 AWG + 34C x 28AWG Health Care application 32 COAX, 34 DC ETFE insulation TPU Jacket WIRE
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: None
Product character:
Flame rated : FT2
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:113±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Silver plated copper | Tinned copper stranded |
| Cross section | A:32Coaxx34AWG | B:34Cx28AWG |
| Construction | 7/0.06mm | 19/0.08mm |
| Strand Dia.(Ref) | 0.18mm | 0.40mm |
| Insulation | FEP | ETFE |
| Nom.Thickness | 0.15mm | 0.10mm |
| Insulation Dia. | 0.53±0.05mm | 0.65±0.05mm |
| Insulation colour | nature | B1.black B2.white B3.red B4.green B5.brown B6.blue B7.orange B8.yellow B9.violet B10.gray B11.pink B12.black/white B13.black/red B14.black/green B15.black/brown B16.black/blue B17.black/orange B18.black/yellow B19.black/violet B20.black/gray B21.red/white B22.red/green B23.red/brown B24.red/blue B25.red/orange B26.red/yellow B27.red/violet B28.red/gray B29.white/red B30.white/green B31.white/brown B32.white/blue B33.white/orange B34.white/yellow |
| Spiral | Silver plated copper,0.08mm,≥85% | / |
| Inner jacket | FEP | / |
| Nom.Thickness | 0.15mm | / |
| Inner jacket Dia. | 1.25±0.08mm | / |
| Inner jacket Color | Inner layer:A1.black A2.white A3.red A4.green A5.brown A6.blue A7.orange A8.yellow A9.violet A10.gray A11.pink A12.black/white A13.black/red A14.black/green A15.black/brown A16.black/blue A17.black/orange A18.black/yellow A19.black/violet A20.black/gray A21.red/white A22.red/green A23.red/brown A24.red/blue A25.red/orange A26.red/yellow A27.red/violet A28.red/gray A29.white/red A30.white/green A31.white/brown A32.white/blue | / |
| Filler | Optioanl | |
| Material | PTFE tape,(12C+18C) | |
| Material | PTFE tape | |
| Assembly | 32Coaxx34AWG+34Cx28AWG | |
| Braid | Tinned copper | |
| Size | 0.12mm,Min.85% | |
| Material | PTFE tape | |
| Jacket | TPU | |
| Nom.Thickness | 0.76mm | |
| Nom outer Dia | 0.61mm | |
| Jacket Dia. | 12.60±0.50mm | |
| Colour | Per request | |
Insulation:FEP and ETFE
Conductor : Silver plated copper
Construction
Insulation:B1.black B2.white B3.red B4.green B5.brown B6.blue B7.orange B8.yellow B9.violet B10.gray B11.pink B12.black/white B13.black/red B14.black/green B15.black/brown B16.black/blue B17.black/orange B18.black/yellow B19.black/violet B20.black/gray B21.red/white B22.red/green B23.red/brown B24.red/blue B25.red/orange B26.red/yellow B27.red/violet B28.red/gray B29.white/red B30.white/green B31.white/brown B32.white/blue B33.white/orange B34.white/yellow
Jacket : Per request
Jacket: TPU
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
RoHS,REACH Compliant,
Technical data
Rated voltage:100V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 1.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | 80℃ |
| Voltage rating | 100V |
| Max.conductor DC resistance(20℃) | A:930Ω/km B:243Ω/km |
| Voltage resistance | 1.0kV/1min |
| Impedance (A) | 50±5Ω |
