Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper Stranded | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 600V | Temperature: | 150℃ |
| HWATEK: | HT2303752 | ||
| High Light: | 1 AWG Industrial Flexible Cable,PVC Jacket Single Wire UL1232,Bare Copper Stranded Single Wire |
||

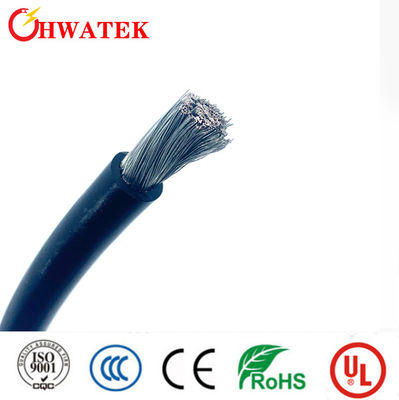

Bare Copper Stranded 1 AWG 600V 105℃ PVC Jacket UL1232 single wire
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated :FT1
Tensile strength:≥10.3 MPa
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | 1AWG | ||||
| CONDUCTOR | Material | Bared copper stranded | |||
| Size | 19/1.70mm | ||||
| O.D.(Ref) | 8.60mm | ||||
| INSULATION | Material | PVC | |||
| Min.average thickness | 1.98mm | ||||
| Min.thickness at any point | 1.78mm | ||||
| O.D. | 12.80±0.50mm | ||||
Insulation:PVC
Conductor : Bare copper
Construction
Insulation: per request
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International:
RoHS,REACH Compliant,
Technical data UL1232
Rated voltage:600V
Rated Temperature: 105℃
Flame: FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| PHYSICAL PROPERTIES | |||
| Tensile strength: | ≥10.3MPa | ||
| Elongation: | ≥100% | ||
| Aged condition: | 136±1℃×168h | ||
| Percent of original tensile strength: | ≥70% | ||
| Percent of original elongation: | ≥65% | ||
