HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper Stranded | Insulation: | TPE |
|---|---|---|---|
| Jacket: | TPU | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 300V | Temperature: | 80℃ |
| HWATEK: | HT2303781 | ||
| High Light: | TPU Jacket Industrial Flexible Cable,TPU Jacket Composite Cable,Bare Copper Stranded Shield Cable 300V |
||

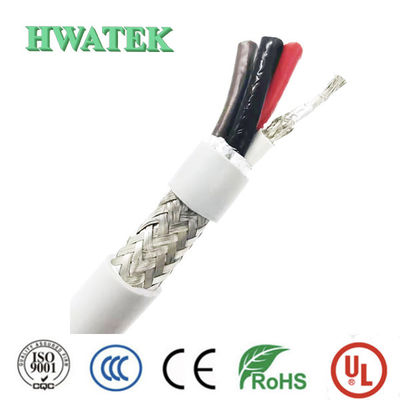

Bare Copper Stranded shield NOUL 6C × 18 AWG + 3C × 10AWG Cable 300V TPU Jacket COMPOSITE Cable
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: Outdoor
Product character:
Flame rated :FT2
Tensile strength:≥10.3 MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| ITEM | A: 6C×18AWG | B: 3C×10AWG | |||
| CONDUCTOR | Material | Bare copper stranded | |||
| Size | 105/0.10mm | 413/0.127mm | |||
| O.D.(Ref) | 1.35mm | 3.40mm | |||
| INSULATION | Material | TPE | TPE | ||
| Min.average thickness | 0.38mm | 1.14mm | |||
| Min.thickness at any point | 0.33mm | 1.02mm | |||
| O.D. | 2.10±0.15mm | 5.70±0.30mm | |||
| CABLING | / | / | |||
| Filler | Optional | ||||
| Material | Non-woven | ||||
| Assembly | 6C×18AWG+3C×10AWG | ||||
| JACKET | Material | TPU(oil resistance) | |||
| Min.average thickness | 1.90mm | ||||
| Min.thickness at any point | 1.52mm | ||||
| O.D. | 18.50±1.00mm | ||||
Insulation:TPE
Conductor : Bare copper
Construction
Insulation: A1.red A2.black A3.yellow,A4.blue A5.orange,A6.white B1.white B2.green B3.black
Jacket : TPU
Jacket: TPU(oil resistance)
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: NOUL
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 80℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:300V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃): | |
| A: 21.8Ω/km B: 3.409Ω/km | |
| Voltage withstand test:AC 2.0kV/1min |
