HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bared Copper | Insulation: | HDPE |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, EV Charging, Green Energy Etc | Packing: | Packed In Reels |
| Volatge: | 30V | Temperature: | 80℃ |
| PN: | HT2401277 | ||

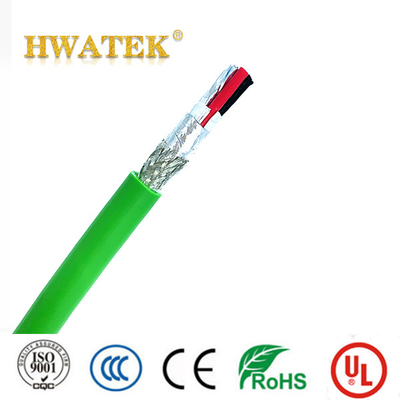

| High Light: | bared copper stranded CAT5E sftp cable,4 pair CAT5E sftp cable,26AWG CAT5E sftp cable |
||
| ITEM | 4P×26AWG+MAB | ||||
| CONDUCTOR | Material | Bare Copper Stranded | |||
| Size | 7/0.16±0.008mm | ||||
| O.D.(Ref) | 0.48mm | ||||
| INSULATION | Material | HDPE | |||
| Min.average thickness | 0.18mm | ||||
| Min.thickness at any point | 0.15mm | ||||
| O.D. | 0.95±0.10mm | ||||
| TWISTED | O.D.(Ref) | 1.90mm | |||
| CABLING | Assembly | 4P×26AWG+MAB | |||
| Material | Mylar,≥25% | ||||
| Material | AL-mylar,≥25% | ||||
| Braid | Material | Tinned Copper | |||
| Size | 0.1mm,≥80% | ||||
| JACKET | Material | PVC | |||
| Min.average thickness | 0.69mm | ||||
| Min.thickness at any point | 0.64mm | ||||
| O.D. | 6.00±0.30mm | ||||
Conductor Bared copper stranded
Cross section 4P×26AWG+MAB
Construction 7/0.16±0.008mm
Elongation ≥100%
Strand Dia.(Ref.) 0.48mm
Aged condition 113±1℃×168h
Insulation PVC
Nom.Thickness 0.18mm
Min.Thickness 0.15mm
Insulation Dia. 1.80±0.10mm
Insulation: 1.white/blue,blue, 2.white/orange,orange, 3.white/green , green, 4.white/brown,brown
Jacket PVC
Reference standard:(UL) TYPE CM
Nom.Thickness 0.69mm
Min.Thickness 0.64mm
Outer Dia. 6.00±0.30mm
Colour per request
UL758-E258652-20060111A-CertificateofCompliance(2)...
| ELECTRICAL CHARACTERISTICS | |
| Rated voltage:30V | |
| Rated temperature:80℃ | |
| Max. DC conductor resistance(20℃):140Ω/km | |
| Voltage withstand test:AC 0.5kV/1min | |
| Impedance : 100±15Ω |
