Industrial 40 AWG - 6 AWG PVC Multicore Cable With Tinned / Bare Copper Conductor

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

Industrial 40 AWG - 6 AWG PVC Multicore Cable With Tinned / Bare Copper Conductor

China Industrial 40 AWG - 6 AWG PVC Multicore Cable With Tinned / Bare Copper Conductor supplier

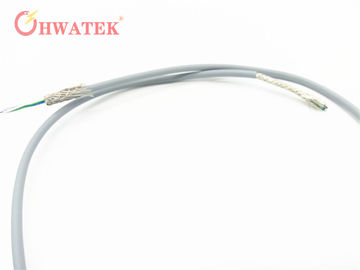

Large Image :  Industrial 40 AWG - 6 AWG PVC Multicore Cable With Tinned / Bare Copper Conductor

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2661

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL2661 Size: 40AWG-6AWG
Conductor: Solid Or Stranded, Tinned Or Bare Copper. Core Number: Multiple-core
Standard: UL758,UL1581, UL2556 Insulation Material: PVC,PE, SRPVC, PP
Shield Material: Copper, AL-Mylar, Tinned Copper Sheath Material: PVC
Application: External Interconnection Or Internal Wiring Of Electronic Equipment Rated Voltage: 600V Or 1000V
Temperature: -40℃-105℃ Flame: VW-1,FT1,FT2
Free Sample: YES

UL2661 Multiple-conductor cable using non-integral jacket, 80℃,90℃,105 ℃, 300V VW-1, 60 ℃  or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP

Shield or Braid: Optional

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300V

Rated  Temperature:-40-105

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 Industrial 40 AWG - 6 AWG PVC Multicore Cable With Tinned / Bare Copper Conductor   AWM STYLE 2661 AWGXX 105℃ 300V VW-1 ---c AWM I A/B 105℃ 300V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
