Product Name: | TC-ER, COPPER , PVC Power Cable,covering Nylon 90°C, 600V, ANSI/NFPA 70 | Size: | Conductor Sizes 18 AWG To 1000 Kcmil Copper |
---|---|---|---|
Conductor: | Solid Or Stranded, Tinned Or Bare Copper. | Core Number: | Multiple-core |
Standard: | UL1277,UL758,UL1581, UL2556 ,UL83 | Insulation Material: | PVC |
Covering Material: | Nylon | Shield Material: | Copper, AL-Mylar, Tinned Copper |
Sheath Material: | PVC | Rated Voltage: | 600V |
Temperature: | -40℃-90℃ | Flame: | FT4, VW-1 FT1, FT2 |
Free Sample: | YES | ||
High Light: | multi conductor tray cable,power and control tray cable type tc |

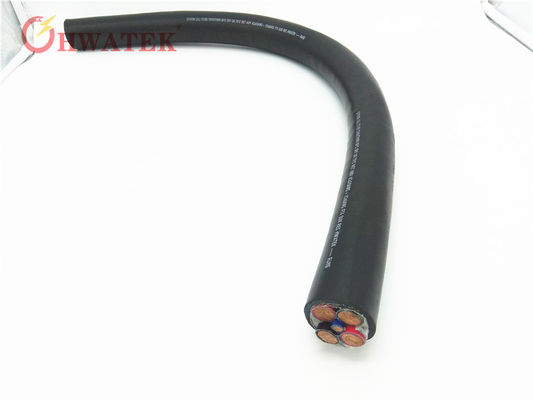

TC-ER, COPPER , PVC power cable,covering Nylon 90°C, 600V, ANSI/NFPA 70
Construction
Conductor : Solid or Stranded
Insulation: PVC
Covering:Nylon
Shield or Braid: Optional
Jacket: PVC
Application: ANSI/NFPA 70 conformant flexible power cables up to 600 V, for all machinery in tool and plant constuction, suitable for installation in dry, humid and damp environments, in the open and in pipes. For underground installation and for open,
International: UL1277,AWM-Style 2587 to UL Std.758 and CSA C22.2 No 210 I/II A/B 90C 600 V ; type THHW acc. to UL Std.83 (≥ AWG 18)
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:-40℃-90℃
Flame: FT4,VW-1 FT1, FT2
a. High mechanical property
b. Sunlight resistant, heat resistant, moisture resistant
c. Crush resistant, environmental stress cracking resistant
Voltage withstand test:AC 2.0kV/1min
Printing :E489601 (UL) TYPE TC-ER XXC-XXAWG 90℃ DRY OR WET 600V SUN RES HWATEK
Note: Where "XX" means AWG No.
Specifications
Certificates
UL, CUL,CE
