UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG

UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG
UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG

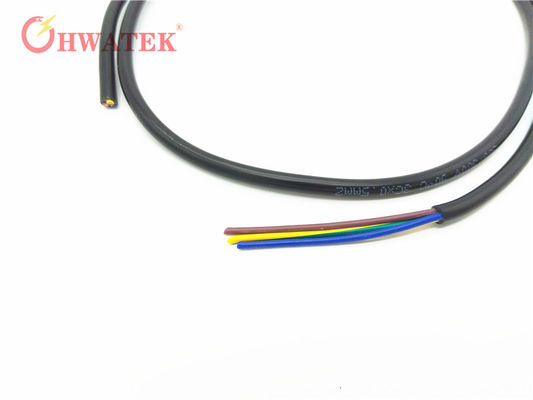

Large Image :  UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL2448
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL2448 Size: 40AWG Min
Conductor: Solid Or Stranded, Tinned Or Bare Copper. Core Number: Consists Of Two Or More Conductors, Twisted Pairs Or Groups Of Twisted Conductors Twisted Together. The Conductors Or Groups Of Conductors May Be Laid Parallel Forming A Flat, Oval Or Round Cable.
Standard: UL758,UL1581, UL2556 Insulation Material: PVC,PE, SRPVC, PP, FOAM-PE
Shield Material: Copper, AL-Mylar, Tinned Copper Sheath Material: PVC
Application: External Interconnection Or Internal Wiring Of Electronic Equipment Rated Voltage: 30V
Temperature: -40℃-80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

electric hook up cable

,

flexible hook up wire

UL2448 Multiple-conductor cable using non-integral jacket, 80℃, 30V VW-1, 60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC,PE, SRPVC, PP, Foam-PE

Shield or Braid: Optional

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:30V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 0.5kV/1min

Printing :E258652 UL2448 Multiple Conductor Hook Up Wire , Multi Conductor Power Cable 40AWG 0   AWM STYLE 2448 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
