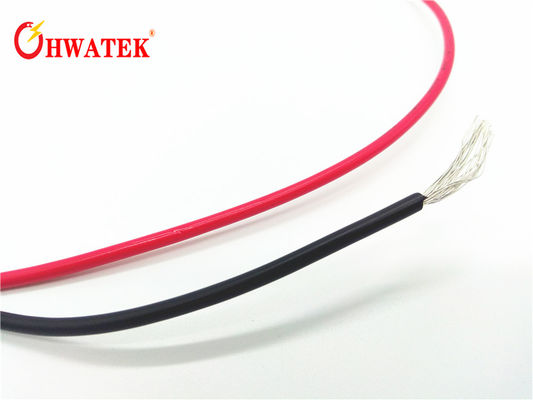

UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor

UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor
UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor

Large Image :  UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL1483
Payment & Shipping Terms:
Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL1483 Size: 28 AWG - 9 AWG
Conductor: Consisting Of 30 AWG Or Smaller Stranded,solid Or Stranded, Tinned Or Bare Copper. Core Number: 1 Core
Standard: UL758,UL1581, UL2556 Insulation Material: PVC
Sheath Material: PVC Application: Internal Wiring
Rated Voltage: 600V Temperature: 105℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

single conductor wire

,

single core insulated wire

UL1483 Single conductor using extruded non-integral jacket, 105 ℃, 600 V VW-1, 60 ℃ or 80 ℃ Oil



Construction

Conductor : Solid or Stranded
Insulation: PVC

Jacket: PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:600 V
Rated  Temperature:105

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min

Printing :E258652 UL1483 Single Conductor Cable With Non Integral Jacket Tinned / Bare Copper Conductor 0   AWM STYLE 1483 AWGXX 105℃ 600V VW-1 ---c AWM I A/B 105℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.





Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
