GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128

China GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128 supplier
GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128 supplier GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128 supplier GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128 supplier

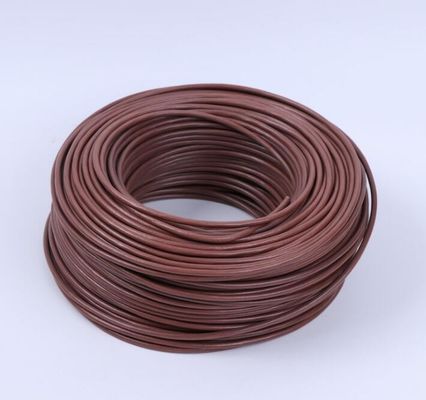

Large Image :  GXL Flexible Automotive Electrical Wire , Car Electrical Cable 8-20 AWG SAE J1128

Product Details:

Brand Name: HWATEK
Certification: ROHS, REACH,TS16949
Model Number: GXL

Payment & Shipping Terms:

Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: GXL Size: 8-20AWG
Conductor: Stranded, Tinned Or Bare Copper Core Number: 1core
Standard: SAE J1128 Insulation Material: XLPE
Application: For Internal Wiring Of Automobile Rated Voltage: 50V
Temperature: 125℃ Free Sample: YES

GXL, Resistant oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength



Construction

Conductor :Stranded, tinned or bare copper
Insulation:  XLPE



Standards
International:SAE J1128

RoHS,REACH Compliant,



Technical data
Rated voltage:50V
Rated  Temperature:125



Product character:

Uniform insulation thickness to ensure easy stripping and cutting

resistant to oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength

Voltage withstand test:AC 1.0kV/1min





Specifications

Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km

AWG NO./mm

Nom. Thickness

mm

Nom. Dia.

mm

20 26/0.16 0.60 2.14 37.56
18 41/0.16 0.60 2.38 24.82
16 26/0.254 0.60 2.69 15.06
14 41/0.254 0.60 3.08 9.65
12 65/0.254 0.66 3.74 6.07
10 65/0.32 0.79 4.57 3.73
8 55/0.45 0.94 5.73 2.23




Certificates



ROHS, REACH,TS16949



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
