GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

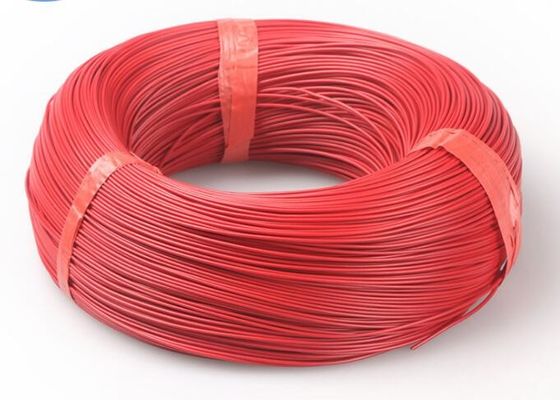

GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation

GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation
GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation

Large Image :  GPT Copper Automotive Primary Wire Auto Electrical Wire 14-20 AWG PVC Insulation

Product Details:
Brand Name: HWATEK
Certification: ROHS, REACH,TS16949
Model Number: GPT
Payment & Shipping Terms:
Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: GPT Size: 14-20AWG
Conductor: Stranded, Tinned Or Bare Copper Core Number: 1core
Standard: SAE J1128 Insulation Material: PVC
Application: For Internal Wiring Of Automobile Rated Voltage: 50V
Temperature: 105℃ Free Sample: YES
High Light:

car electrical cable

,

vehicle electrical wiring

GPT, Resistant oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength



Construction

Conductor :Stranded, tinned or bare copper
Insulation:  PVC



Standards
International:SAE J1128

RoHS,REACH Compliant,



Technical data
Rated voltage:50V
Rated  Temperature:105



Product character:

Uniform insulation thickness to ensure easy stripping and cutting

resistant to oil, high temperature, ozone and abrasion, high flexibility thermo and mechanical strength

Voltage withstand test:AC 1.0kV/1min





Specifications

Conductor Insulation

Max. Cond. Resistance (200C)

Ω/km

AWG NO./mm

Nom. Thickness

mm

Nom. Dia.

mm

20 7/0.40 0.60 2.40 21.40
18 19/0.26 0.60 2.50 18.50
16 19/0.287 0.60 2.64 15.81
14 19/0.361 0.60 3.01 10.01






Certificates



ROHS, REACH,TS16949



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
