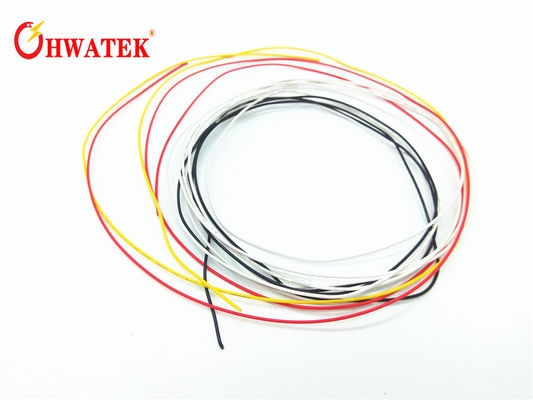

UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG

UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG
UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG

Large Image :  UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL1061

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: Carton / Pallet
Delivery Time: 2W
Payment Terms: T/T
Detailed Product Description
Product Name: UL1061 Size: 30AWG - 14AWG
Conductor: Stranded Bare Or Tinned Copper, IEC60228 CL5 Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: Special SR-PVC
Application: Internal Wiring Of Appliances Rated Voltage: 300V
Temperature: 80℃ Flame: VW-1,FT1,FT2
Free Sample: YES
High Light:

single core pvc insulated cable

,

single core insulated wire

UL1061 Single Conductor with Extruded Special SR-PVC Insulation,High flexible

UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG 0

Construction

Conductor : Stranded bare or tinned copper, IEC60228 CL5
Insulation: Special SR-PVC



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300V
Rated  Temperature:80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 UL1061 Single Conductor Flexible Cable SR - PVC Insulation 30AWG - 14AWG 1   AWM STYLE 1061 AWGXX 80℃ 300V VW-1 ---c AWM I A/B 80℃ 300V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.



Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
