TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment

TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment
TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment

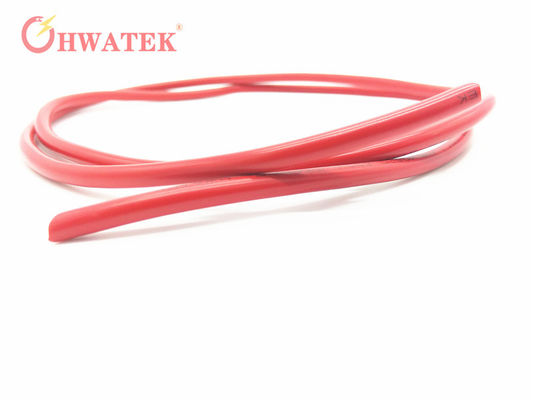

Large Image :  TPE Sheath Single Core Flexible Cable Insulated Wire For Mobile Equipment

Product Details:
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: High Flexible Single core TPE Sheath cable,Halogen Free 80 ℃, 600V,VW-1
Payment & Shipping Terms:
Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: High Flexible Single Core TPE Sheath Cable,Halogen Free 80 ℃, 600V,VW-1 Size: 30AWG - 4/0AWG
Conductor: Stranded, Tinned Or Bare Copper, IEC60228 CL5 Core Number: 1core
Standard: UL758,UL1581, UL2556 Insulation Material: PP, TPEE
Sheath Material: TPE Application: For Use In And On Mobile Equipment,The 600 V Version With Thick Insulation Wall Is Ideal For Many Measuring Instruments Such As Multimeters
Rated Voltage: 600V Temperature: -40~105℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

single core copper wire

,

single core insulated wire

High Flexible Single core TPE Sheath cable,Halogen Free 105 ℃, 600V,VW-1



Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:PP, TPEE

Sheath:TPE



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:600 V
Rated  Temperature:-40~105℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min





Minimum bending radius
flexing 7,5x cable Ø
fixed installation 4x cable Ø



Specifications



Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
