PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V VW-1

PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V  VW-1
PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V  VW-1 PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V  VW-1 PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V  VW-1

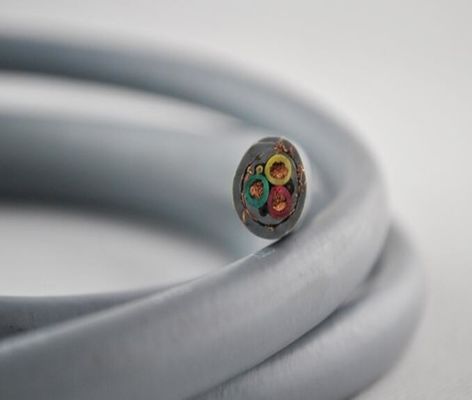

Large Image :  PUR Sheath Screened Multicore Flexible Cable Halogen Free 80 ℃ 300V or 600V VW-1

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Multiple-core Flexible cable,PUR Sheath, Halogen free,High Flexible,Screened

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: Multiple-core Flexible Cable,PUR Sheath, Halogen Free,High Flexible,Screened Size: 40AWG MIN
Conductor: Stranded, Tinned Or Bare Copper, IEC60228 CL5 Core Number: Multiple-core
Standard: UL758,UL1581, UL2556,IEC60228 Insulation Material: PP,TPEE
Shield Material: Bare Or Tinned Copper Braid Sheath Material: PUR
Rated Voltage: 300V OR 600V Temperature: -40℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES
High Light:

flexible multicore cable

,

multicore control cable

Multiple-core Flexible cable,PUR Sheath, Halogen free,High Flexible,Screened,80 ℃, 300V or 600V VW-1



Construction

Conductor : stranded, tinned or bare copper, IEC60228 CL5
Insulation:  PP,TPEE

Shield or Braid: bare or tinned copper braid

Jacket: PUR

Application:These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,





Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:300V~600V

Rated  Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2
Oil resistance: 60 ℃ or 80 ℃ Oil

Voltage withstand test:AC 2.5kV/1min



Properties

Extensively oil resistant,
Conditional drag chain compatible

Conditional suitability for torsion

low Temperature
self-extinguishing and flame retardant




Specifications



Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
