UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free

Good quality Single Core Flexible Cable for sales
Good quality Single Core Flexible Cable for sales
I'm Online Chat Now

UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free

China UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free supplier
UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free supplier UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free supplier UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free supplier

Large Image :  UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL20855 Low Voltage Computer Cable

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Contact Now
Detailed Product Description
Product Name: UL20855 Low Voltage Computer Cable Size: 40AWG Min
Conductor: Solid Or Stranded, Tinned Or Bare Copper Core Number: Two Or More Single -core Wires Was Twisted Into Twisted Into Pair Or Cabling Again
Standard: UL758,UL1581, UL2556 Insulation Material: PP, PE, FOAM PE
Shield Material: Bare Or Tinned Copper Braid Or Spiral And AL-mylar Sheath Material: FRPE
Rated Voltage: 30V Temperature: -20℃-80℃
Flame: VW-1,FT1,FT2 Free Sample: YES

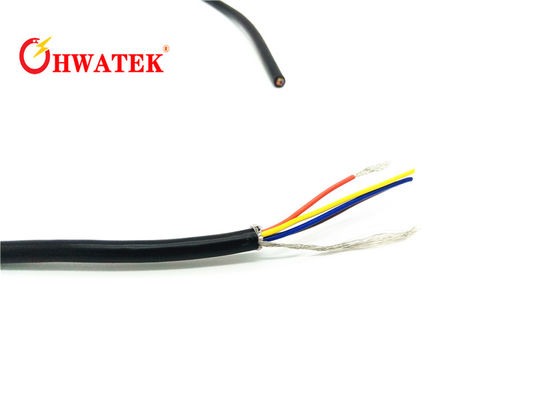

UL20855 Low Voltage Computer Cable ,Halogen-free,effectively resist electromaganetic interference,80 ℃, 30V VW-1



Construction

Conductor : solid or stranded, tinned or bare copper
Insulation:PP, PE, FOAM PE

Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar

Jacket: FRPE

Application: CNC machines,household appliances, computer and elecronic business machines



Standards
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,



Technical data
Rated voltage:30V

Rated  Temperature:-20-80

Flame: VW-1, FT1, FT2

Voltage withstand test:AC 0.5kV/1min

Printing :E258652 UL20855 Low Voltage Computer Connection Cables With FRPE Jacket Halogen Free   AWM STYLE 20855 AWGXX 80℃ 30V VW-1 ---c AWM I A/B 80℃ 30V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.



Properties

effectively resist electromaganetic interference

Excellent insulation performance

Halogen-free



Specifications





Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
