PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

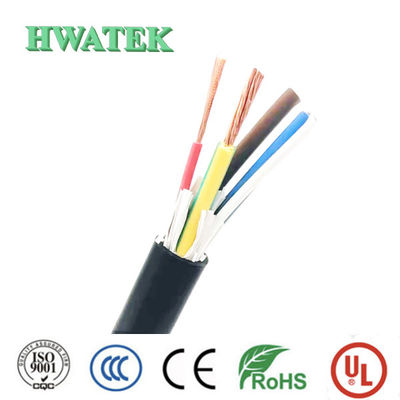

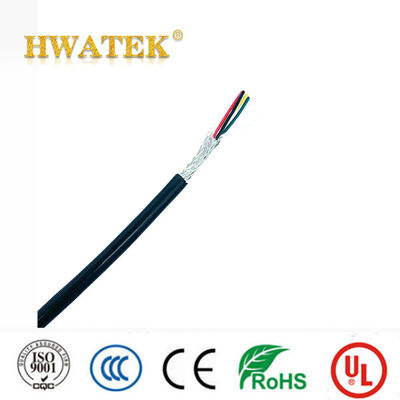

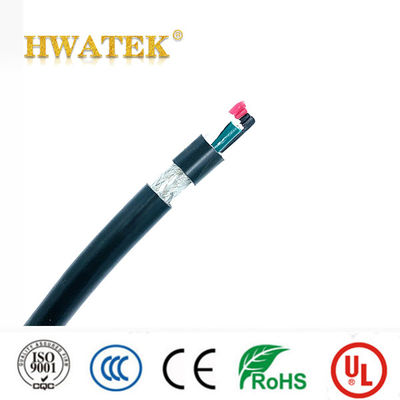

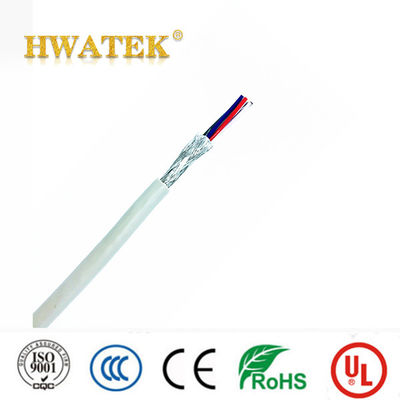

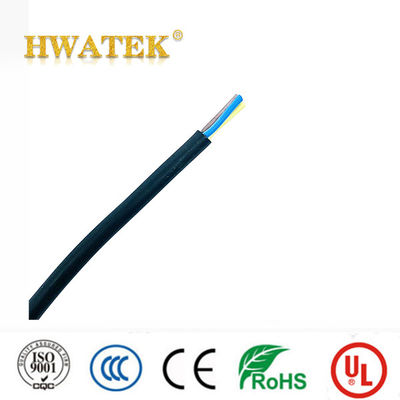

PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG

PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG
PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG

Large Image :  PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL, CE, RoHS, Reach
Model Number: UL2576
Payment & Shipping Terms:
Minimum Order Quantity: 100m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-4 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper, Tinned Copper, Silver Plated Copper Insulation: SR-PVC
Jacket: PVC Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 150V Temperature: -20~80℃
Hwatek Number: HT1504567
High Light:

Electrical Equipment Industrial Flexible Cable

,

Alpha 1172C Industrial Flexible Cable

,

Electronic Equipment Industrial Flexible Cable

UL 2576 2C X 22AWG PVC Jacket Slate Multicore wire, Alpha 1172C wire



Product Description

Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581
Product character:
Excellent insulation performance, stable chemical properties

UV resistance , anti-acid and environmental protection etc.

Tensile strength:≥10.3MPa    Elongation:≥100%

Aged condition:113±1℃×168h

Percent of original tensile strength: ≥70%

Percent of original elongation: ≥65%



UL758 -E258652-20060111-CertificateofCompliance-1....

ITEM 2C×22AWG(7/0.254T)
CONDUCTOR Material Tinned copper stranded
Size 7/0.254±0.008mm
O.D.(Ref) 0.76mm
INSULATION Material SR-PVC
Min.average thickness 0.23mm
Min.thickness at any point 0.18mm
O.D. 1.30±0.05mm
CABLING Material AL-mylar( face in)
Pitch 8.0 Twists/foot (min)
Assembly 2C×22AWG(7/0.254T)
BRAID Material Tinned copper
Size 0.1mm(80% min.)
JACKET Material PVC
Min.average thickness 0.76mm
Min.thickness at any point 0.61mm
O.D. 4.80±0.20mm


Conductor : stranded, tinned or bare copper
Construction

Insulation:SR-PVC
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket:PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2576
RoHS,REACH Compliant,

Technical data
Rated voltage:150V
Rated Temperature: -20~80℃
Voltage withstand test:AC  1.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible

ELECTRICAL CHARACTERISTICS
Rated voltage:150V
Rated temperature:-2080
Max. DC conductor resistance(20℃):59.4Ω/km
Voltage withstand test:AC 1.0kV/1min
Nom.Capacitance(C~C):33pf/ft(1kHz)
Nom.Inductance:0.18uH/ft
Nom.conductor DCR(at 20):16.4Ω/1000ft



PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 0

PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 1



PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 2





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 3

Production Progress

PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 4

Shipping
PVC Jacket Slate Multicore Industrial Flexible Cable Alpha 1172C UL 2576 2C X 22AWG 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
