HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper, Tinned Copper, Silver Plated Copper | Insulation: | FEP |
|---|---|---|---|
| Jacket: | FEP | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 300V | Temperature: | 200℃ |
| HWATEK: | HT2301412 | ||
| High Light: | 300V tinned copper wire,high temperature tinned copper wire,UL 1332 tinned copper wire |
||

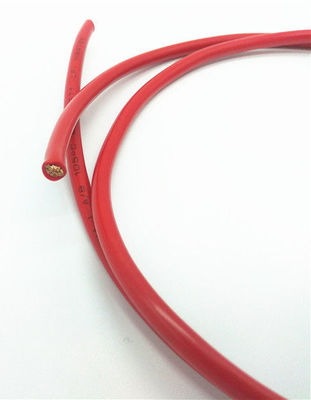

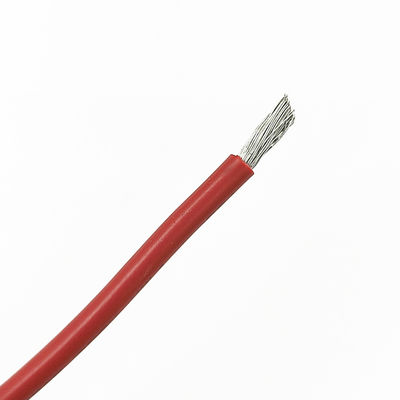

UL 1332 FEP material 1 X 30AWG 200C 300V high temperature tinned copper wire
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758 & UL 1330
Product character:
Flame rated : FT2
Tensile strength:≥17.2MPa Elongation:≥200%
Aged condition:232±1℃×168H
Percent of original tensile strength: ≥75%
Percent of original elongation: ≥75%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Tinned copper stranded | |
| Cross section | 30AWG | |
| Construction | 7/0.10mm | |
| Strand Dia.(Ref.) | 0.30mm | |
| Insulation | FEP | |
| Nom.Thickness | 0.33mm | |
| Min.Thickness | 0.30mm | |
| Insulation Dia. | 1.00±0.08mm | |
| Insulation colour | Per request | |
Insulation:FEP
Conductor : Tinned copper stranded
Construction
Insulation:FEP
Jacket : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL1332
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature: 200℃
Flame: FT2
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | 200℃ |
| Voltage rating | 300V |
| Max.conductor DC resistance(20℃) | 381Ω/km |
| Dielectric Strength AC | 2.0kV/1min |
Company Profiles
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
Certificates
Production Progress
Shipping
FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
