Product Details:
Payment & Shipping Terms:
|
| Conductor: | Bare Copper, Tinned Copper, Silver Plated Copper | Insulation: | PVC |
|---|---|---|---|
| Jacket: | PVC | Cable Shape: | Round |
| Application: | Industrial, Comsumer Electrics, Medical, Etc | Packing: | Packed In Reels |
| Volatge: | 600V | Temperature: | 105℃ |
| HWATEK: | HT2301729 | ||
| High Light: | PVC Bare Copper Wire,600V High Voltage Bare Copper Wire,1 X 2 AWG Bare Copper Wire |
||

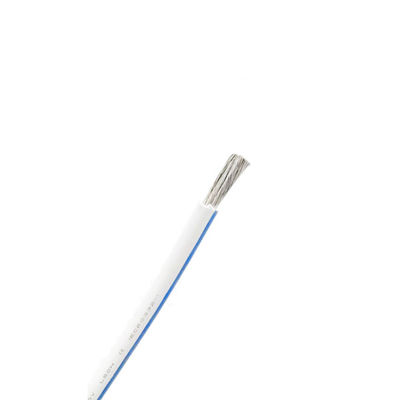

UL 1283 PVC material 1 X 2 AWG 105C 600V high Voltage Bared copper wire
Product Description
Application: Internal wring or external interconnection of electronic equipment.
Application standard: UL758 & UL 1283
Product character:
Flame rated :VW-1
Tensile strength:≥10.3MPa Elongation:≥100%
Aged condition:136±1℃×168h
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
UL758 -E258652-20060111-CertificateofCompliance-1....
| Construction | ||
| Conductor | Stranded Bared Copper | |
| Cross section | 2AWG | |
| Construction | 2622/0.127mm | |
| Strand Dia.(Ref.) | 8.30mm | |
| Insulation | PVC | |
| Nom.Thickness | 1.52mm | |
| Min.Thickness | 1.37mm | |
| Insulation Dia. | 11.50±0.40mm | |
| Insulation colour | Per request | |
Insulation:PVC
Conductor : Bared Copper
Construction
Insulation:pvc
Jacket : Per request
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL1283
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature: 105℃
Flame: VW-1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
| Electric Performance | |
| Rated Temperature | 105℃ |
| Voltage rating | 600V |
| Max.conductor DC resistance(20℃) | 0.5335Ω/km |
| Dielectric Strength AC | 2.0kV/1min |
