Payment & Shipping Terms:
|Conductor:||Bared Copper Stranded||Insulation:||PVC|
|Jacket:||PVC(UV Resistance)||Cable Shape:||Round|
|Application:||Industrial, Comsumer Electrics, Medical, Etc||Packing:||Packed In Reels|

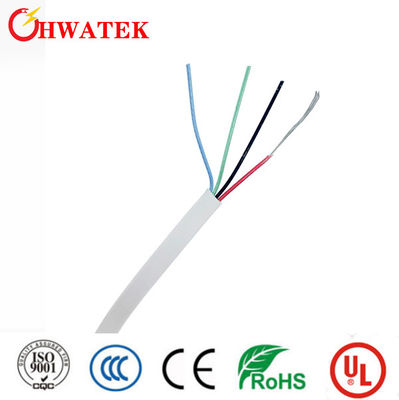

PVC Jacket Stranded Copper Conductor,
UV Resistance Bared Copper Stranded Wire,
Copper Stranded Wire 2C×0.75mm2
PVC Jacket UV resistance Bared Copper Stranded 2C×0.75mm2 11198021 Equivalent Cable
Flame rated : IEC 60332-1-2
Tensile strength:≥10.3 MPa Elongation:≥100%
Percent of original tensile strength: ≥70%
Percent of original elongation: ≥65%
|CONDUCTOR||Material||Bared copper stranded|
|Min.thickness at any point||0.61mm|
|Min.thickness at any point||0.91mm|
Conductor : Bared copper stranded
Insulation:1~2Black with white numbers
Jacket: Per request
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Rated Temperature: -40~80℃
Flame: IEC 60332-1-2
Voltage withstand test:AC 4.0kV/1min
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
|3.Nom. DC conductor resistance(at 20℃):27.4Ω/km|
|4.Voltage withstand test:AC 4.0kV/1min|
|Percent of original tensile strength≥70%|
|Percent of original elongation≥65%|
|Moved: 15x cable diameter|
|Fixed : 4 x cable diameter|
|Flame retardant according to IEC 60332-1-2|
Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A: Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
Contact Person: Jimmy Wang
