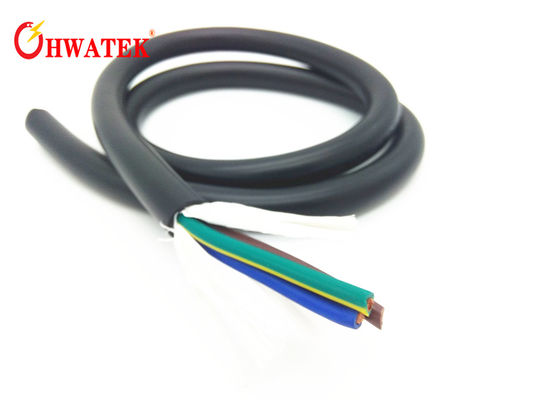

Multi Core Copper Wire Industrial Flexible Control Cable PVC Insulated 1000V

Basic Properties
Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: Flexible Cable, meter marking,oil resistant,UV resistant,1000V, PVCjacketed.
Trading Properties
Minimum Order Quantity: 6.1KM
Price: Negotiable
Standard Packaging: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Tags

flexible control cable

flexible electrical cable

industrial electric wire and cable
Product Summary
Flexible Cable, meter marking,oil resistant,UV resistant,1000V, PVCjacketed. Construction Conductor : stranded, tinned or bare copper Insulation:PVC,SRPVC, PE,TPEE Jacket: PVC Standards International:UL758 AWM STYLE 2586,UL1581, UL2556, IEC60228 CL5 RoHS,REACH Compliant, Technical data Rated voltage...

Product Details

Highlight:

flexible control cable

,

flexible electrical cable
Product Name: Flexible Cable, Meter Marking,oil Resistant,UV Resistant,1000V, PVCjacketed.
Size: 40AWG MIN
Conductor: Stranded, Tinned Or Bare Copper
Core Number: Multiple-core
Standard: UL758 AWM STYLE 2586,UL1581, UL2556, IEC60228 CL5
Insulation Material: PVC,SRPVC,PP, TPEE
Sheath Material: PVC
Application: For Fixed Installation Or Flexible Application, With Free Movements Without Forcing Which Do Not Constantly Recur And Without Tensile Stress, For High Mechanical Strain
Rated Voltage: 1000V
Temperature: -40℃-105℃
Flame: VW-1,FT1,FT2,IEC60332-1-3
Free Sample: YES
Product Description

Flexible Cable, meter marking,oil resistant,UV resistant,1000V, PVCjacketed.



Construction

Conductor : stranded, tinned or bare copper
Insulation:PVC,SRPVC, PE,TPEE

Jacket: PVC



Standards
International:UL758 AWM STYLE 2586,UL1581, UL2556, IEC60228 CL5

RoHS,REACH Compliant,



Technical data
Rated voltage:1000V

Rated  Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:AC3.5kV/1min





Properties

Excellent insulation performance

Extensively oil resistant

Flexible

Low Temperature

UV resistant

High Voltage



Specifications







Certificates



UL, CUL, CE



Packing and Shipping



  1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  4. The cargo, manufacturer, packing details will be labeled on the outer packing;
  5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  6. Shipping term, It depends on the value of the goods and the will of the customer.
