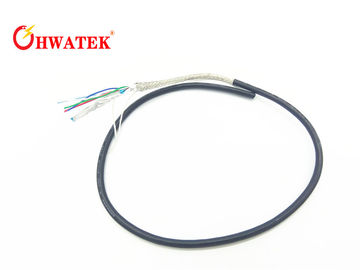

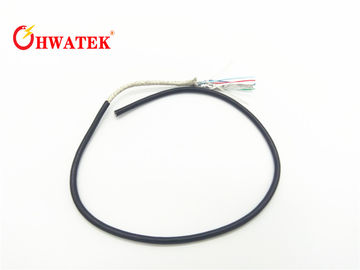

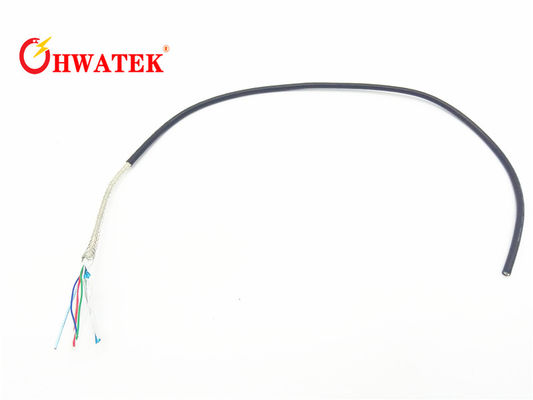

Stranded 4 Core Servo Motor Extension Cable Double Shielded Cable Low Capacitance

Servo Cable,low-capacitance, double shielded cable with PVC black sheath

Construction

Conductor : stranded,  bare copper
Insulation: PE

Assembly:4 cores lay-up

Shield or Braid: Aluminium-laminated foil wrapping combined with tin-plated copper braiding

Jacket:PVC  Black

Standards
International: UL758  ,UL1581, UL2556, IEC60228 CL5,VDE0281

RoHS,REACH Compliant,

Technical data
Rated voltage:600V/1000V

Rated  Temperature:-40℃-105℃

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:Test voltage: Core/Core: 4 kV , Core/Shield: 4 kV

Properties

High power transmission for large drives
Longer cable connection possible between converter and drive due to low capacitance designVersions with black outer sheath are suitable for outdoor use and direct burial

Minimum bending radius: Occasional flexing: 15 x outer diameter
Fixed installation: 6 x outer diameter

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

1. The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
2. If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
3. Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
4. The cargo, manufacturer, packing details will be labeled on the outer packing;
5. About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
6. Shipping term, It depends on the value of the goods and the will of the customer.
