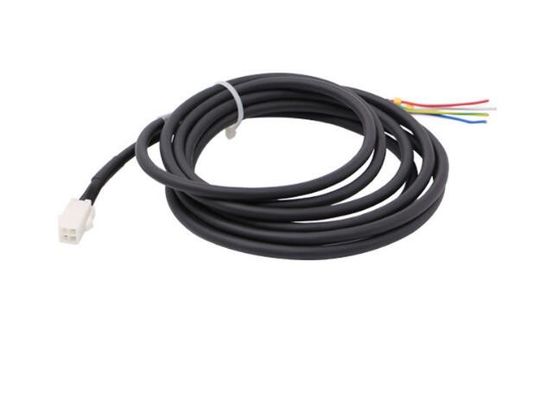

Flexible Electrical Servo Motor Cable Multi Core Abrasion Resistant Bare Copper Conductor

Name: Flexible Electrical Servo Motor Cable Multi Core Abrasion Resistant Bare Copper Conductor
Brand: HWATEK
SKU: Servo Cables, SPIRAL LiF2Y11Y, abrasion-resistant, PUR gray sheath
Rating: 4.8 (196 reviews)

Large Image : Flexible Electrical Servo Motor Cable Multi Core Abrasion Resistant Bare Copper Conductor

Product Details:

Brand Name:	HWATEK
Certification:	UL,CUL, CE,ROHS, REACH
Model Number:	Servo Cables, SPIRAL LiF2Y11Y, abrasion-resistant, PUR gray sheath

Payment & Shipping Terms:

Minimum Order Quantity:	6.1KM
Price:	Negotiable
Packaging Details:	carton/pallet
Delivery Time:	2-3W
Payment Terms:	T/T

Contact Now

Detailed Product Description

Product Name:	Servo Cables, SPIRAL LiF2Y11Y, Abrasion-resistant, PUR Gray Sheath	Conductor:	Stranded, Bare Copper
Assembly:	Multi-cores	Standard:	UL758 UL AWM Style 20549 ,UL1581, UL2556, IEC60228 CL5,VDE 0207 / 0250 / 0295,SIEMENS® Standard 6FX 5008
Insulation Material:	PP	Sheath Material:	PUR Outer Sheath, Gray
Application:	For Requirements Of Electronic Applications In Measurement And Control Engineering Handling And Measurement Equipment Conveyor And Transport Systems	Rated Voltage:	300V
Temperature:	-40℃-80℃	Flame:	FT1,FT2,IEC60332-1-3
Free Sample:	YES
High Light:	servo extension cable , servo motor extension cable

Servo Cables, SPIRAL LiF2Y11Y, abrasion-resistant, PUR gray sheath

Construction

Conductor : stranded, bare copper
Insulation: PP

Jacket:PUR outer sheath, gray

Standards
International: UL758 AWM Style 20549 ,UL1581, UL2556, IEC60228 CL5,VDE0281,

RoHS,REACH Compliant,

Application For requirements of electronic applications In measurement and control engineering Handling and measurement equipment Conveyor and transport systems

Technical data
Rated voltage:300V

Rated Temperature:-40℃-80℃

Flame: VW-1, FT1, FT2,IEC60332-1-3

Voltage withstand test:1500 kV

Properties

Abrasion and cut-resistant
Very high flexibility
Halogen-free and flame-retardant

Specifications

Certificates

UL, CUL, CE

Packing and Shipping

The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
The cargo, manufacturer, packing details will be labeled on the outer packing;
About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
Shipping term, It depends on the value of the goods and the will of the customer.

Tag:

motor feedback cable,

servo motor extension cable,

servo extension cable
