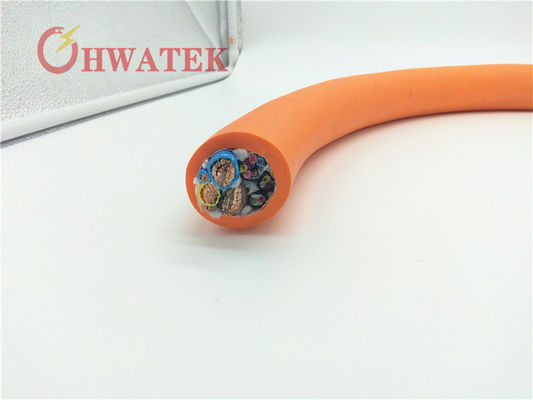

EV Charging Cable EV Cable EVDC-S90PS90 , Flexible Extension Cord For Electric Car

EV Charging Cable EV Cable EVDC-S90PS90 , Flexible Extension Cord For Electric Car
EV Charging Cable EV Cable EVDC-S90PS90 , Flexible Extension Cord For Electric Car EV Charging Cable EV Cable EVDC-S90PS90 , Flexible Extension Cord For Electric Car

Large Image :  EV Charging Cable EV Cable EVDC-S90PS90 , Flexible Extension Cord For Electric Car

Product Details:
Place of Origin: China
Brand Name: HWATEK
Certification: RoHS , CQC, DEKRA,TS16949
Model Number: EV Cable , EVDC-S90PS90 , electric vehicles during the charging process(DC), DEKRA and CQC Certified
Payment & Shipping Terms:
Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton / pallet
Delivery Time: 2-3 W
Payment Terms: T/T
Detailed Product Description
Conductor: Stranded Tinned Or Bare Copper, IEC60228 CLASS5 Insulation: Thermoplastic Elastomer
Assembly: 10~95(2cores)+Drain Wire+4~6(2cores)+0.5~2.5(P)(1~12cores) Sheath: TPE
High Light:

electric vehicle charging cable

,

ev charging wire

EV Cable , EVDC-S90PS90 , electric vehicles during the charging process(DC), DEKRA and CQC Certified





Advantages

a. flexible

b. Oil resistant

c. UV resistant

d: High-flame

e: Moisture-proof



Application Range

a. Connection wire between EV DC charging equipment  .

b.EV DC Charging station, DC Charging pile.



Construction

Conductor : stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer

Assembly:10~95(2cores)+Drain wire+4~6(2cores)+0.5~2.5(P)(1~12cores)

Non-woven wrap

Screened: bare or tinned copper braid

Sheath:TPE



Application standard

CQC1103~1105-2015

RoHS,REACH Compliant



Technical data
Rated voltage:1000V DC

Rated Temperature:-40-90

Flame:IEC60332-1-3, FT1, FT2

Voltage withstand test:

Power wire:1.0~95mm2:DC 8.4kV/15min

Signal wire:0.5~2.5mm2P :DC 3.6kV/15min
