HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Conductor: | Stranded Tinned Or Bare Copper, IEC60228 CLASS6 | Insulation: | TPE |
|---|---|---|---|
| Assembly: | 10~95(2cores)+Drain Wire+4~6(2cores)+0.5~2.5(P)(1~12cores) | Sheath: | TPU |
| High Light: | electric vehicle charging cable,ev charging wire |
||

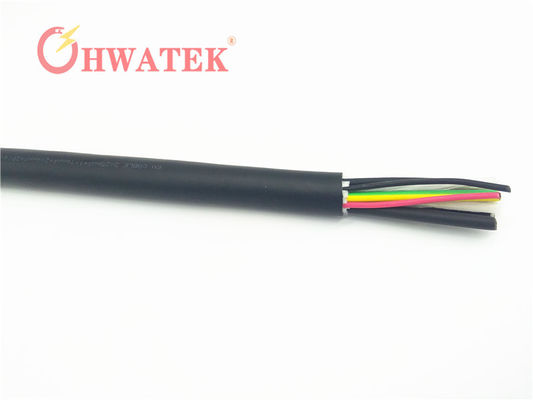

EV Cable , EVDC-RS90U , electric vehicles during the charging process(DC), TPU Sheath, DEKRA and CQC Certified
Advantages
a. High-flexible
b. Oil resistant
c.UV resistant
d: High-flame
e: Moisture-proof
f: Abrasion-resistant
Application Range
a. Connection wire between EV DC charging equipment .
b.EV DC Charging station, DC Charging pile.
Construction
Conductor : stranded, tinned or bare copper, IEC60228 CLASS6
Insulation: TPE
Assembly:10~95(2cores)+Drain wire+4~6(2cores)+0.5~2.5(P)(1~12cores)
Non-woven wrap
Sheath:TPU
Application standard
CQC1104~1105 2015
RoHS,REACH Compliant
Technical data
Rated voltage:1000V DC
Rated Temperature:-40℃-90℃
Flame:IEC60332-1-3, FT1, FT2
Voltage withstand test:
Power wire:1.0~95mm2:DC 8.4kV/15min
Signal wire:0.5~2.5mm2P :DC 3.6kV/15min
