EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation

Certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
China HWATEK WIRES AND CABLE CO.,LTD. certification
thank you very much for your quick response . Your professional cable solution helps me out , Cable quality is very good . It fits our connectors

—— Gonalze

Your products quality beyond my imagine, I highly appreciate your great support , Hope have better and deeper cooperation in future.

—— Bharath

I'm Online Chat Now

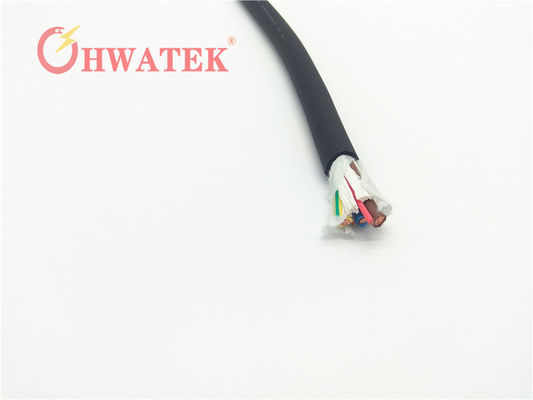

EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation

EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation
EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation

Large Image :  EVDC-RS90PS90 Electric Vehicle Charging Cable With Thermoplastic Elastomer Insulation

Product Details:

Place of Origin: China
Brand Name: HWATEK
Certification: RoHS , CQC ,DEKRA, TS16949
Model Number: EV Cable , EVDC-RS90PS90 , electric vehicles during the charging process, DC,DEKRA and CQC Certified

Payment & Shipping Terms:

Minimum Order Quantity: 6.1 KM
Price: Negotiable
Packaging Details: carton / pallet
Delivery Time: 2-3 W
Payment Terms: T/T
Detailed Product Description
Conductor: Stranded Tinned Or Bare Copper, IEC60228 CLASS6 Insulation: Thermoplastic Elastomer
Assembly: 10~95(2cores)+Drain Wire+4~6(2cores)+0.5~2.5(P)(1~12cores) Sheath: TPE
High Light:

electric vehicle charging cable

,

ev charging wire

EV Cable , EVDC-RS90PS90 , electric vehicles during the charging process(DC),  DEKRA and CQC Certified





Advantages

a. High-flexible capable of being bent.

b. Oil resistant

c. UV resistant

d: High-flame

e: Moisture-proof



Application Range

a. Connection wire between EV DC charging equipment  .

b. EV DC Charging station, DC Charging pile.



Construction

Conductor : stranded, tinned or bare copper
Insulation: Thermoplastic Elastomer

Assembly:10~95(2cores)+Drain wire+4~6(2cores)+0.5~2.5(P)(1~12cores)

Non-woven wrap

Screened: bare or tinned copper braid

Sheath:TPE



Application standard

CQC1103~1105-2015

RoHS,REACH Compliant



Technical data
Rated voltage:1000V DC

Rated Temperature:-40-90

Flame:IEC60332-1-3, FT1, FT2

Voltage withstand test:

Power wire:1.0~95mm2:DC 8.4kV/15min

Signal wire:0.5~2.5mm2P :DC 3.6kV/15min
