| Conductor: | Stranded Tinned Or Bare Copper, IEC60228 CLASS5 | Insulation: | TPE |
|---|---|---|---|
| Assembly: | 10~70(2~5cores)+0.5~0.75(P)(1~10cores) | Sheath: | TPU |
| High Light: | electric vehicle charging cable,electric car charging cable,Oil Resistant EV Cable |
||

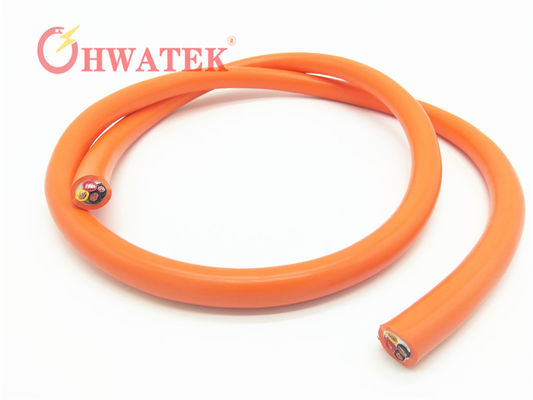

EV Cable , EV-S90U , electric vehicles during the charging process(AC), TPU Sheath, DEKRA and CQC Certified
Advantages
a. Flexible
b. Oil resistant
c. UV resistant
d: High-flame
e: Moisture-proof
f: Abrasion-resistant
Application Range
a. Connection wire between EV AC charging equipment .
b.EV AC Charging station, AC Charging pile.
Construction
Conductor : stranded, tinned or bare copper, IEC60228 CLASS5
Insulation: TPE
Assembly:10~70(2~5cores)+0.5~0.75(P)(1~10cores)
Non-woven wrap
Sheath:TPU
Application standard
CQC1103~1105 2015
RoHS,REACH Compliant
Technical data
Rated voltage:450/750V AC
Rated Temperature:-40℃-90℃
Flame:IEC60332-1-3, FT1, FT2
Voltage withstand test:
Power wire:1.0~70mm2:AC 2.5kV/5min
Signal wire:0.5~0.75mm2P :DC 1.5kV/5min
