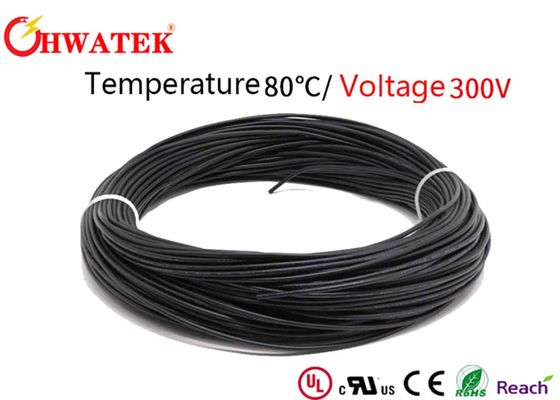

PVC Insulation UL1007 300V 80℃ Single Conductor Cable

PVC Insulation UL1007 300V 80℃ Single Conductor Cable
PVC Insulation UL1007 300V 80℃ Single Conductor Cable

Large Image :  PVC Insulation UL1007 300V 80℃ Single Conductor Cable

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL1007

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL1007 Rated Voltage: 300V
Temperature: 80℃ Core Number: 1core
Size: 32 AWG - 16 AWG Conductor: Solid Or Stranded
Insulation Material: PVC Standard: UL758,UL1581, UL2556
Flame: VW-1,FT1,FT2 Application: Internal Wiring Of Appliances
Free Sample: YES
High Light:

80℃ Single Conductor Cable

,

UL1007 Single Conductor Cable

,

32AWG Single Conductor Cable

UL1007 single core PVC insulated wire 300V 80With Solid / Stranded Conductor For Appliances Wiring

1.Construction with UL 1007:

Conductor : Solid or Stranded
Insulation: PVC

PVC Insulation UL1007 300V 80℃ Single Conductor Cable 0

2.Standards with UL 1007:

International: UL758 , UL1581, UL2556

RoHS,REACH Compliant

3.Technical data with UL 1007:

Rated voltage:300V

Rated  Temperature: 80℃

Flame: VW-1, FT1, FT2

Oil resistance: 60 deg C or 80 deg C Oil

Voltage withstand test:AC 2.0kV/1min

Printing :E258652 PVC Insulation UL1007 300V 80℃ Single Conductor Cable 1   AWM STYLE 1007 AWGXX 80℃ 300V VW-1 ---cPVC Insulation UL1007 300V 80℃ Single Conductor Cable 1 AWM I A/B 80℃ 300V FT1 -LF-HWATEK

Note: Where "XX" means AWG No.

4.Specifications with UL 1007:







Part NO.

Size

(AWG)

Tinned copper stranded Insulation(PVC 80℃)
Construction

Dia.

(mm)

Resistance

(Ω/km)

Avg. thick.

(mm)

Min. thick.

(mm)

Outer Dia.

(mm)

HT1201509 30 7/0.10 0.30 381 0.38 0.33 1.10±0.05
HT1201510 28 7/0.127 0.38 239 0.38 0.33 1.20±0.05
HT1201511 26 7/0.16 0.48 150 0.38 0.33 1.30±0.05
HT1201512 24 11/0.16 0.61 94.2 0.38 0.33 1.40±0.10
HT1201513 22 17/0.16 0.76 59.4 0.38 0.33 1.60±0.10
HT1201514 20 26/0.16 0.94 36.7 0.38 0.33 1.80±0.10
HT1201515 18 41/0.16 1.18 23.2 0.38 0.33 2.10±0.10
HT1201516 16 26/0.254 1.5 14.6 0.38 0.33 2.30±0.10



5.Certificates with UL 1007:

UL, CUL, CE

6.Packing and Shipping with UL 1007:

  • The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  • If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  • Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  • The cargo, manufacturer, packing details will be labeled on the outer packing;
  • About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  • Shipping term, It depends on the value of the goods and the will of the customer.

7.More pictures with UL 1007:

PVC Insulation UL1007 300V 80℃ Single Conductor Cable 3

PVC Insulation UL1007 300V 80℃ Single Conductor Cable 4

PVC Insulation UL1007 300V 80℃ Single Conductor Cable 5
