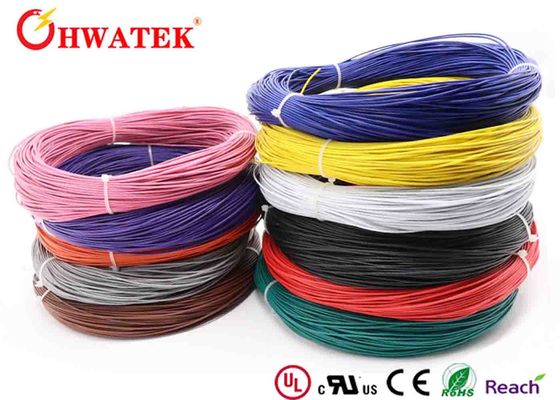

30 AWG UL1013 750V Single Core PVC Insulated Wire
Basic Properties
Brand Name:
HWATEK
Certification:
UL,CUL, CE,ROHS, REACH
Model Number:
UL1013
Trading Properties
Minimum Order Quantity:
6.1KM
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Supply Ability:
T/T
Product Summary
UL1013 single core PVC insulated wire 600V OR 750V 80 or 90℃ With Solid / Stranded Conductor For Internal wiring of appl 1.Construction with UL 1013: Conductor : Solid or Stranded Insulation: PVC 2.Standards with UL 1013: International: UL758 , UL1581, UL2556 RoHS,REACH Compliant, 3.Technical data ...
Product Details
Highlight:
750V PVC Insulated Wire
,UL1013 PVC Insulated Wire
,30 AWG PVC Insulated Wire
Product Name:
UL1013
Rated Voltage:
600V OR 750V
Temperature:
80 Or 90℃
Core Number:
1core
Size:
30 AWG - 2000 Kcmil
Conductor:
Solid Or Stranded
Insulation Material:
PVC
Standard:
UL758,UL1581, UL2556
Flame:
VW-1,FT1,FT2
Application:
Internal Wiring Of Appliances
Free Sample:
YES
Product Description
UL1013 single core PVC insulated wire 600V OR 750V 80 or 90℃ With Solid / Stranded Conductor For Internal wiring of appl
1.Construction with UL 1013:
Conductor : Solid or Stranded
Insulation: PVC
2.Standards with UL 1013:
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
3.Technical data with UL 1013:
Rated voltage:600V or 750v
Rated Temperature:80 or 90 OC
Flame: VW-1, FT1, FT2
Oil resistance: 60 deg C or 80 deg C Oil
Voltage withstand test:AC 3.5kV/1mi
Printing :E258652 AWM STYLE 1013 AWGXX 90℃ 600V VW-1 ---c AWM I A/B 90℃ 600V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.
4.Specifications with UL 1013:
5.Certificates with UL 1013:
UL, CUL, CE
6.Packing and Shipping with UL 1013:
- The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
- If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
- Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
- The cargo, manufacturer, packing details will be labeled on the outer packing;
- About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
- Shipping term, It depends on the value of the goods and the will of the customer.
7.More pictures with UL 1013:
