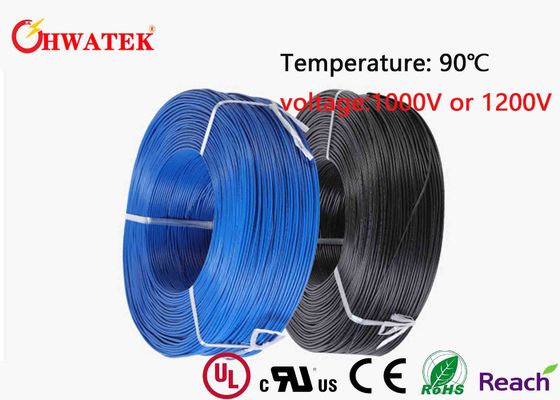

FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire

FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire
FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire

Large Image :  FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire

Product Details:

Brand Name: HWATEK
Certification: UL,CUL, CE,ROHS, REACH
Model Number: UL1032

Payment & Shipping Terms:

Minimum Order Quantity: 6.1KM
Price: Negotiable
Packaging Details: carton/pallet
Delivery Time: 2-3W
Payment Terms: T/T
Detailed Product Description
Product Name: UL1032 Rated Voltage: 1000V OR 1200V
Temperature: 90℃ Core Number: 1core
Size: 30 AWG - 2000 Kcmil Conductor: Solid Or Stranded
Insulation Material: PVC Standard: UL758,UL1581, UL2556
Flame: VW-1,FT1,FT2 Application: Internal Wiring Of Appliances
Free Sample: YES
High Light:

PVC Insulated Single Conductor Wire

,

UL1032 Single Conductor Wire

,

FT1 Flame Single Conductor Wire

UL1032 PVC insulated single conductor wire 1000V OR 1200V 90℃ With Solid / Stranded Conductor For Internal wiring of appliances,VW-1, FT1, FT2, 60 deg C or 80 deg C Oil

1.Construction with UL 1032:

Conductor : Solid or Stranded
Insulation: PVC

2.Standards with UL 1032:
International: UL758 , UL1581, UL2556

RoHS,REACH Compliant,

3.Technical data with UL 1032:
Rated voltage:1000V or 1200V
Rated  Temperature: 90℃
Flame: VW-1, FT1, FT2
Oil resistance: 60 deg C or 80 deg C Oil

Voltage withstand test:AC 3.5kV/1min

Printing :E258652 FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire 0   AWM STYLE 1032 AWGXX 90℃ 1000V VW-1 ---cFT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire 0 AWM I A/B 90℃ 1000V FT1 -LF-HWATEK
Note: Where "XX" means AWG No.

4.Specifications with UL 1032:

Part NO. Size

(AWG)
Tinned copper stranded Insulation(PVC 105℃)
Construction Dia.
(mm)
Resistance
(Ω/km)
Avg. thick.(mm) Min. thick.
(mm)
Outer Dia.
(mm)
HT1803692 30 7/0.10 0.30 381 0.76 0.69 1.9±0.10
HT1603263 26 7/0.16 0.48 150 0.76 0.69 2.1±0.10
HT2001390 24 7/0.20 0.60 94.2 0.76 0.69 2.2±0.10
HT2003822 6 266/0.254 5.40 1.403 1.52 1.37 8.7±0.30
HT1801402 4 1666/0.127 7.20 0.8481 1.52 1.37 10.6±0.40
HT1803394 2 1121/0.20 8.30 0.53351 1.52 1.37 11.7±0.40
HT1903214 1 874/0.254 9.70 0.4398 2.03 1.83 14.3±0.50
HT1906017 1/0 4214/0.127 11.00 0.3487 2.03 1.83 15.7±0.60
HT1501269 2/0 3486/0.16 12.50 0.266 2.03 1.83 17.2±0.60

5.Certificates with UL 1032:

UL, CUL, CE



6.Packing and Shipping with UL 1032:

  • The cargo could be packaged as Hwatek’s standard requirement if client no special request, such as carton, wooden pallet or wooden case;
  • If client put forward special packing requirements, Hwatek will specialize in custom materials and charge some fees;
  • Hwatek’ll pack the cargo according to the transportation requirements strictly, including size, weight and safety;
  • The cargo, manufacturer, packing details will be labeled on the outer packing;
  • About transportation agent, Hwatek will give priority to customers' advice. If not, we can come up with some proposals and choose good and affordable agents for clients reference;
  • Shipping term, It depends on the value of the goods and the will of the customer.

7.More pictures with UL 1032:

 FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire 2

FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire 3

FT1 Flame 30 AWG 90℃ UL1032 Single Conductor Wire 4
