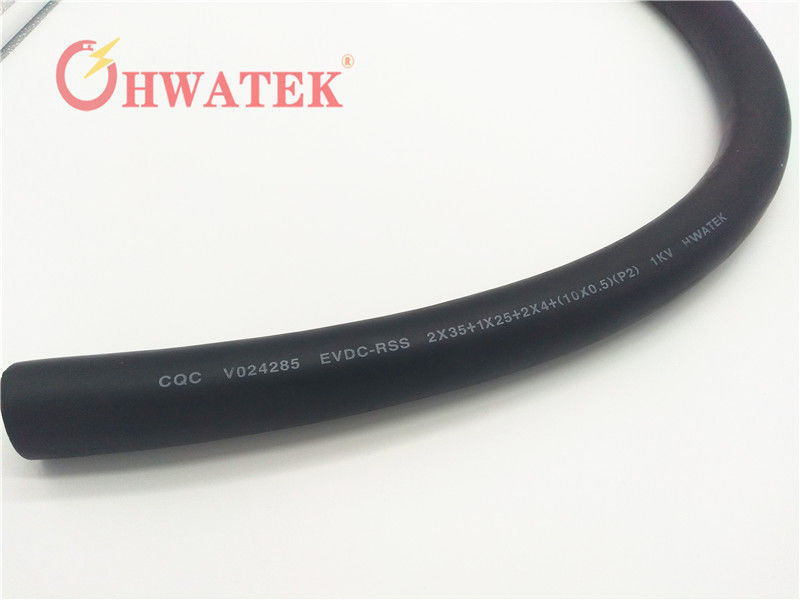

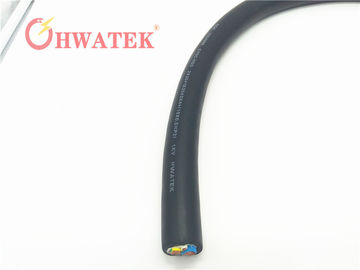

AC450V 750V EV Charging Cable With TPE Insulation
Product Details
750V EV Charging Cable
,450V EV Charging Cable
,TPE Insulation EV Charging Wire
EV-(R)S90U EV-(R)S90S90PU AC450/750V CQC certified electric vehicle charging cable
Certification Body:
General Administration of Quality Supervision, Inspection and Quarantine
| Certificate No. | Product Types |
| CQC16011142377 | EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V |

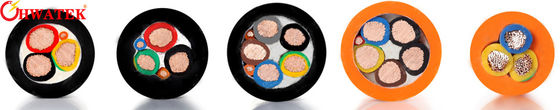

structure diagram:
Reference standard:GB/T 33594-2017
Product Category:
Product Category:
AC:EV-(R)S90U EV-(R)S90S90PU-450/750V 1.0-70(2-5Cores)+0.5-0.75(P/P2)(1-10Cores)
Construction:
Rated temperature:-40 ~ +90°C
Rated voltage:AC450/750V
conductor:Stranded bare or tinned copper
Insulation material:TPE
Sheath material:TPU
Flexible Construction, Resistant to cold, oil (11 types), ozone, abrasion, UV, external pressure and thermal stress, IEC60332-1 flammability test, minimum bending radius 5xOD, easily installation
Product is applicable for all kinds of electric vehicles, charging piles, power station, charging station.
Structural parameter table:
|
Category |
Wire specifications |
Reference current (A) |
Diameter unshielded (mm) |
|
| TPE | PU | |||
| EV-(R)SS,EV-(R)SSPS,EV-(R)S90S90,EV-(R)S90S90PS90,EV-(R)S90U,EV-(R)S90S90PU-450/750V | 3×2.5+2×0.75 | 18 | 12.7 | 11.1 |
| 3×4+2×0.75 | 25 | 14.4 | 12.8 | |
| 3×6+2×0.75 | 34 | 16.3 | 14.5 | |
| 5×2.5+2×0.75 | 18 | 15.3 | 13.7 | |
| 5×4+2×0.75 | 25 | 17.8 | 16.0 | |
| 5×6+2×0.75 | 34 | 19.8 | 17.8 | |
| 5×10+2×0.75 | 50 | 22.9 | 20.7 | |
| 5×16+2×0.75 | 67 | 27.5 | 25.1 | |
1. The detailed dimensions are subject to the product specifications.
2. Other specifications can be designed and manufactured according to customer requirements.
3. The color of the sheath is generally black or orange. If there is special requirement, it can be customized according to customer's requirement.
-
