Product Details:
Payment & Shipping Terms:
|
| Application: | Drag Chain Wiring , Interconnection Wire | Jacket: | PU |
|---|---|---|---|
| Insulation Material: | PE Or PP Insulation | Standard: | UL758, UL1581, CSA C22.2 No.210.2 |
| Conductor: | Stranded Bare Copper Conductor | Rated Voltage: | 300V |
| Name: | UL20549 Multi-core Shielding PU Jacket Cable 80C 300V | Rated Temperature: | 80ºC |
| High Light: | Shielding Flexible Multicore Cable,PU Jacket Flexible Multicore Cable,300V Multicore Industrial Cable |
||

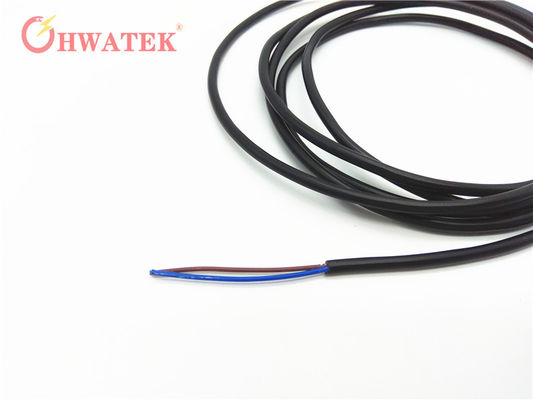

UL20549 Multi-Core Shielding PU Jacket Cable 80C 300V
| Product Number. | Conductor | Insulation | Shield | Jacket |
Max. Cond. Resistance (200C) Ω/km |
||||||
| Cores | Size AWG | NO./mm |
Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
Material | Coverage | Nom. Thickness mm |
Nom. Dia. mm |
||
| HT20549***001 | 3P | 26 | 26/0.08 | 0.48 | 0.26 | 1.00 |
Mylar |
80% | 0.80 | 5.90 | 140 |
| HT20549***002 | 9C | 26 | 26/0.08 | 0.48 | 0.26 | 1.00 | 140 | ||||
| HT20549***003 | 3P | 28 | 16/0.08 | 0.38 | 0.12 | 0.63 | AL | 95% | 0.80 | 5.18 | 223 |
| HT20549***004 | 9C | 28 | 16/0.08 | 0.38 | 0.12 | 0.63 | 223 | ||||
| HT20549***005 | 6P | 28 | 16/0.08 | 0.38 | 0.15 | 0.69 | Mylar | 75% | 0.80 | 4.96 | 223 |
| HT20549***006 | 8P | 28 | 16/0.08 | 0.38 | 0.15 | 0.69 | AL | 85% | 0.80 | 5.26 | 223 |
Application: drag chain wiring , interconnection wire
Application standard: UL758, UL1581, CSA C22.2 No.210.2
UL number:20549
Product character:
Tiny conductor diameter has high flexibility
Oil and heat resistance, anti-bending and abrasion
Pass UL VW-1 and CSA FT1 vertical flame test
Constructure:
Stranded bare copper conductor, 32-4/0AWG
PE or PP insulation
Flat or round cabling ( core wire number max : 20)
Sprial or braiding shield with tinned or bare copper or Al-mylar wrapped shield
PU jacket
Technical parameter:
Rated temperature : 80℃
Rated Voltage: 300V
