HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Application: | Drag Chain Wiring , Interconnection Wire | Jacket: | Flexible PU Jacket |
|---|---|---|---|
| Insulation Material: | TPEE | Standard: | UL758, UL1581, CSA C22.2 No.210.2 |
| Conductor: | Stranded Bare Copper Conductor | Product Name: | Non-interference Individual Shielding Control Cable |
| Rated Voltage: | 300V | Rated Temperature: | 80ºC |
| High Light: | Individual Flexible Control Cable,Non Interference Flexible Control Cable,TPEE Insulation Industrial Flexible Cable |
||

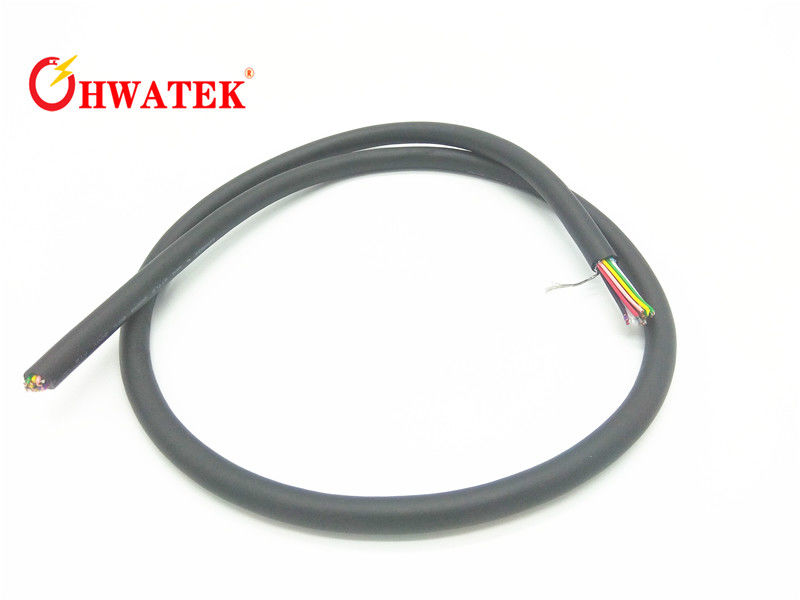

Non-Interference Individual Shielding Control Cable
| Product Number. | Conductor | Insulation | Shield | Jacket |
Max. Cond. Resistance (200C) Ω/km |
||||||
| Cores | Size AWG | NO./mm |
Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
Individual Shield | Overall Shield | Nom. Thickness mm |
Nom. Dia. mm |
||
| HT***0001 | 3P | 26 | 26/0.08 | 0.48 | 0.26 | 1.00 |
Al- Mylar
|
TC Braiding | 1.05 | 7.00 | 140 |
| HT***0002 | 3P | 28 | 16/0.08 | 0.38 | 0.12 | 0.63 | 0.56 | 5.30 | 223 | ||
| HT***0003 | 6P | 28 | 16/0.08 | 0.38 | 0.15 | 0.69 | 0.70 | 5.36 | 223 | ||
| HT***0004 | 8P | 28 | 16/0.08 | 0.38 | 0.15 | 0.69 | 0.70 | 5.66 | 223 | ||
| HT***0005 | 13P | 28 | 16/0.08 | 0.38 | 0.15 | 0.69 | 0.90 | 7.62 | 223 | ||
Application: drag chain wiring , interconnection wire
Application standard: UL758, UL1581, CSA C22.2 No.210.2
Product character:
Standard thickness, easily strip and cut
Tiny conductor diameter has high flexibility
Oil and heat resistance, anti-bending and abrasion
Pass UL VW-1 and CSA FT1 vertical flame test

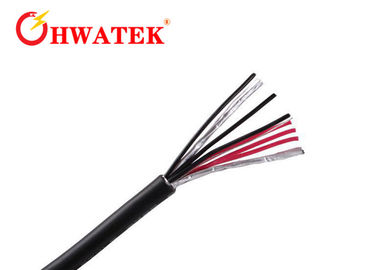

Constructure:
Stranded bare copper conductor
TPEE insulation
Muti-pairs individual shielding and cabling
Braiding shield with tinned copper
Flexible PU jacket
Technical parameter:
Rated temperature : 80℃
Rated Voltage: 300V
