Product Details:
Payment & Shipping Terms:
|
| Product Name: | UL 10455 Single Core Flexible Cable , PVC Insulation Single Conductor Wire | Size: | 22-1AWG |
|---|---|---|---|
| Conductor: | Tinned Or Bare Copper, Stranded Or Solid Conductor | Core Number: | 1core |
| Standard: | UL758&UL1581&CSA C22.2 No.210 | Insulation Material: | PVC |
| Application: | External Wiring Of High-temperature Resistance | Rated Temperature: | 90℃ |
| Flame: | VW-1,FT1 | ||
| High Light: | Oil Resistance Single Core Flexible Cable,PVC Insulation Single Core Flexible Cable,1core Automotive Cable Wire |
||

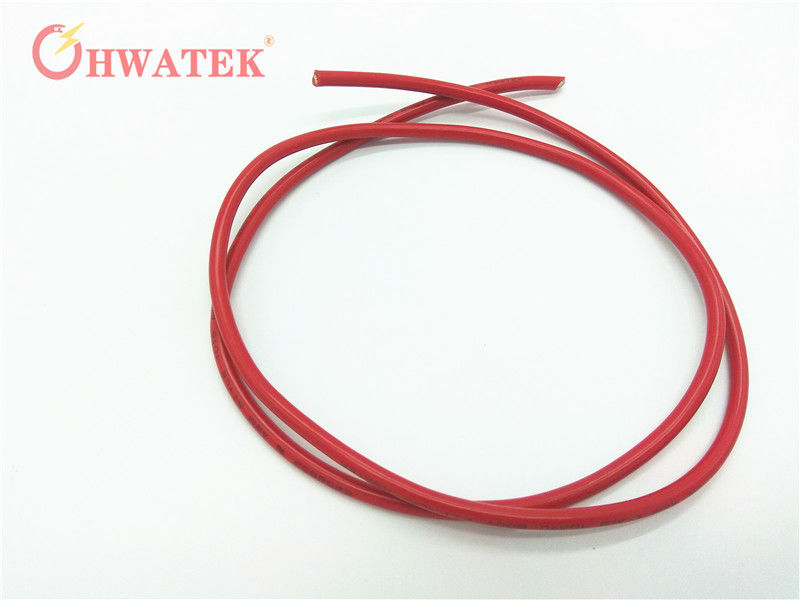

UL 10455 Single Core Flexible Cable , PVC Insulation Single Conductor Wire
Application: External wiring of high-temperature resistance
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Standard insulation thickness, easily strip and cut
Pass UL VW-1 and CSA FT1 vertical flame test
Oil resistance, anti-acid, moisture-proof, Mildew-proof, environmental protection etc.
Constructure:
Tinned or bare copper, stranded or solid conductor, 22-1AWG
PVC insulation
PVC jacket
Technical parameter:
Rated temperature : 90℃
Voltage: 600V
| Product Number | Conductor | Insulation | Jacket |
Max. Cond. Resistance (200C) Ω/km |
||||
| Size AWG | NO./mm |
Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
Nom. Thickness mm |
Nom. Dia. mm |
||
| HT10455**001 | 22 | 17/0.16 | 0.76 | 0.76 | 1.20 | 0.76 | 2.72 | 55.4 |
| HT10455**002 | 20 | 26/0.16 | 0.94 | 0.76 | 1.35 | 0.76 | 2.87 | 34.6 |
| HT10455**003 | 18 | 41/0.16 | 1.18 | 0.76 | 1.70 | 0.76 | 3.25 | 21.8 |
| HT10455**004 | 16 | 26/0.254 | 1.49 | 0.76 | 2.00 | 0.76 | 3.52 | 13.7 |
| HT10455**005 | 14 | 41/0.254 | 1.9 | 0.76 | 3.5 | 0.76 | 5.1 | 8.62 |
| HT10455**006 | 12 | 65/0.254 | 2.4 | 0.76 | 4.2 | 0.76 | 5.8 | 5.43 |
| HT10455**007 | 10 | 105/0.25 | 3.3 | 0.76 | 4.9 | 0.76 | 6.5 | 3.409 |
| HT10455**008 | 8 | 168/0.25 | 4 | 1.14 | 6.2 | 0.76 | 7.8 | 2.144 |
| HT10455**009 | 6 | 266/0.25 | 5 | 1.52 | 7.7 | 0.76 | 9.3 | 1.348 |
| HT10455**010 | 4 | 420/0.25 | 6.5 | 1.52 | 9.0 | 0.76 | 10.6 | 0.848 |
