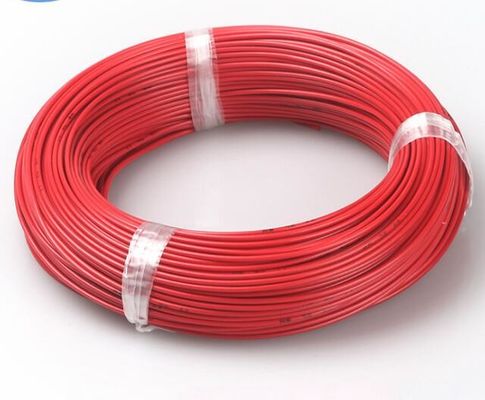

Tinned Conductor Flexible Cable PVC SR- PVC PE Or PP Insulation
Product Details
PE Insulation Flexible Cable
,PP Insulation Flexible Cable
,Tinned Conductor Automotive Flexible Cable
UL 2095 Flexible Cable , PVC , SR- PVC , PE Or PP Insulation
Application: For internal interconnection of electronic equipment
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Effectively resist electromagnetic interference by Aluminum foil, Mylar and Braiding shield
Heat resistance, anti-acid, environmental protection ect.
Pass UL VW-1 and CSA FT1 vertical flame test
Constructure:
Tinned or bare copper, stranded or single conductor, 32-4AWG
PVC,SR- PVC,PE or PP insulation
Two or more single-core wires was twisted into pair or cabling again
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PVC jacket
Technical parameter:
Rated temperature : 80℃
Rated Voltage: 300V
| Product Number | Conductor | Insulation |
Max. Cond. Resistance (200C) Ω/km |
Min insulation resistance (200C) MΩ/km |
Dielectric Strength (AC) V/1min |
|||
| Size AWG | NO./mm |
Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
||||
| HT1201096 | 4C*28 | 7/0.127 | 0.38 | 0.23 | 0.85 | 239 | 15 | 2000 |
| HT1300520 | 3C*26 | 18/0.10 | 0.49 | 0.23 | 1.00 | 140 | 15 | 2000 |
| HT1201021 | 5C*24 | 24/0.10 | 0.57 | 0.30 | 1.20 | 108 | 15 | 2000 |
| HT1300574 | 6P*22 | 7/0.254 | 0.76 | 0.23 | 1.27 | 59.4 | 15 | 2000 |
| HT1200046 | 2C*20 | 26/0.16 | 0.94 | 0.23 | 1.50 | 36.7 | 15 | 2000 |
| HT1200505 | 2C*18 | 16/0.0254 | 1.17 | 0.44 | 2.10 | 23.2 | 15 | 2000 |
| HT1300816 | 2C*16 | 19/0.30 | 1.50 | 0.38 | 2.30 | 14.6 | 15 | 2000 |
-
