HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Application: | Drag Chain Wiring | Jacket: | Flexible PVC |
|---|---|---|---|
| Conductor: | Stranded Bare Copper Conductor | Product Name: | 60227 IEC 52 (RVV) Flexible Power Cable |
| Insulation: | PVC | Core: | 2C-50C |
| Rated Voltage: | 300V | Rated Temperature: | 90℃ |
| High Light: | 60227 IEC 52 Industrial Flexible Cable,60227 IEC 52 Flexible Power Cable,Oil Resistance Industrial Flexible Cable |
||

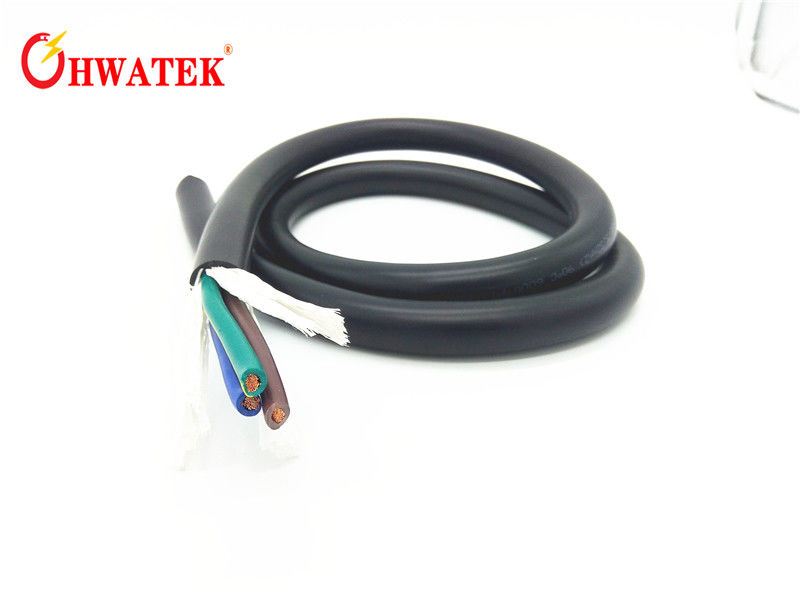

60227 IEC 52 (RVV) Flexible Power Cable -RVV
Application: drag chain wiring
Application standard: GB 5023.3-2008
Product character:
Constructure:
stranded bare copper conductor0.5MM2-70MM2
Flexible PVC insulation
Flexible PVC jacket
Technical parameter:
Rated temperature : 90℃
Rated Voltage: 300V
| Product Number. | Conductor | Insulation | Jacket |
Max. Cond. Resistance (200C) Ω/km |
||||
| CORES | NOM. AREA OF COND. | NO./mm |
Nom. Thickness mm |
Nom. Dia. mm |
Nom. Thickness mm |
Nom. Dia. mm |
||
| HT52RVV1001 | 2 | 0.5 | 7/16/0.08 | 0.5 | 1.95 | 0.6 | 5.10 | 39.0 |
| HT52RVV1002 | 2 | 0.75 | 7/22/0.08 | 0.5 | 2.20 | 0.6 | 5.60 | 26.0 |
| HT52RVV1003 | 3 | 0.5 | 7/16/0.08 | 0.5 | 1.95 | 0.6 | 5.40 | 39.0 |
| HT52RVV1004 | 3 | 0.75 | 7/22/0.08 | 0.5 | 2.20 | 0.6 | 5.95 | 26.0 |
