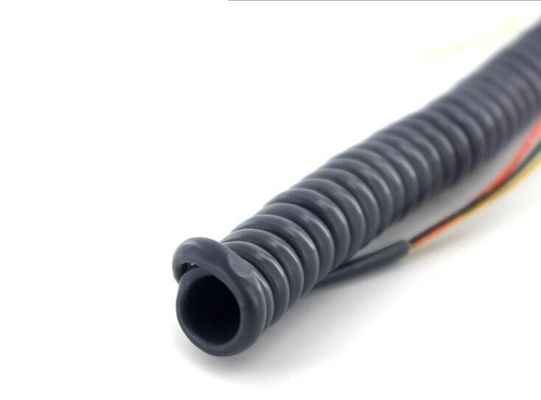

UL Power Spring Push Pull Coil Cord Cable Industrial Spiral Retractable
Basic Properties
Place of Origin:
China
Brand Name:
Hwatek
Certification:
UL,ROHS, REACH
Model Number:
UL
Trading Properties
Minimum Order Quantity:
6.1KM
Price:
Negotiable
Standard Packaging:
carton/pallethttps://mao.ecer.com/index.php?r=product/edit#label_name
Delivery Time:
2-3W
Payment Terms:
T/T
Supply Ability:
3000KM Per month
Product Summary
UL Industrial Coiled Spiral Retractable Power Spring Push Pull Coil Cord Cable Conductor Insulation Shield Jacket Max. Cond. Resistance (20ºC)Ω/km Product Number Size NO./mm Thickness mm Nom. Dia. mm Tape thick. mm Dia. of braid strand mm Thickness mm Nom. Dia. mm HT-1042464027 0.32mm2 19/0.15 0.5 1...
Product Details
Highlight:
UL Coil Cord Cable
,Spiral Industrial Flexible Cable
,Retractable Industrial Flexible Cable
Application:
3G Network System
Jacket:
PP Or PE Insulation
Insulation Material:
PVC
Conductor:
Straned Or Solid, Tinned Or Bare Copper Conductor
Rated Temperature:
80℃
Rated Voltage:
300V
Product Description
UL Industrial Coiled Spiral Retractable Power Spring Push Pull Coil Cord Cable
| Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (20ºC)Ω/km | |||||
| Product Number | Size | NO./mm | Thickness mm | Nom. Dia. mm | Tape thick. mm | Dia. of braid strand mm | Thickness mm | Nom. Dia. mm | |
| HT-1042464027 | 0.32mm2 | 19/0.15 | 0.5 | 1.75 | 0.025 | 24/7/0.12 | 0.8 | 7.9 | 56.8 |
| 0.75mm2 | 42/0.15 | 0.3 | 1.75 | 26 | |||||
| HT-1042464028 | 0.25mm2 | 14/0.15 | 0.45 | 1.5 | 0.025 | 24/7/0.12 | 0.8 | 7.9 | 56.8 |
| 0.75mm2 | 42/0.15 | 0.3 | 1.75 | 26 | |||||
Application: 3G network system
Product Charater:
Sunlight resistance, anti-aging
Passes UL, VW-1 and FTI vertical flame test
Structure:
Straned or solid, tinned or bare copper conductor
PP or PE insulation
Longitudinal AL-mylar shielding, tinned or bare copper wire braid
Leed free and sunlight resistane PVC jacket
Technology Parameter:
Rated temperature: 80ºC
Rated Voltage: 300V
Electrical performance:
Impedanve:100±15(0.5Mhz), 100±15(1Mhz)
Attenuation: Max 1.5dB/100m(0.5Mhz),Max 2.0dB/100m(1Mhz)
