Product Details:
Payment & Shipping Terms:
|
| Application: | Electronic Equipment | Jacket: | PU |
|---|---|---|---|
| Insulation Material: | PP | Conductor: | Tinned Or Bare Copper, Stranded Or Single Conductor |
| Rated Voltage: | 300V | Working Temperature: | 60ºC |
| High Light: | XLPE Insulated Industrial Flexible Cable,Braided Industrial Flexible Cable,Bare Copper Industrial Flexible Cable |
||

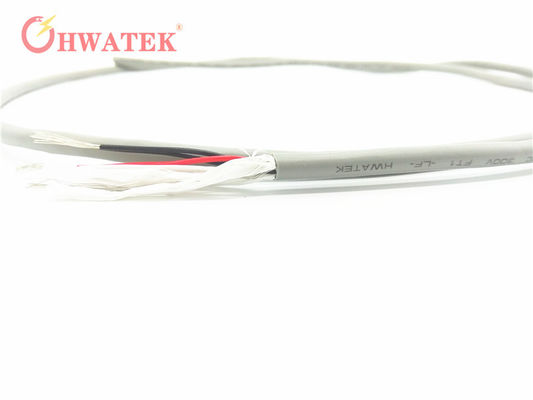

XLPE Insulated 3 Core Braided Bare Copper Electrical Electric Industrial Wire And Cable Wire
pplication: Internal wring or external interconnection of electronic equipment.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Constructure:
Tinned or bare copper, stranded or single conductor (no.:2-50conductors) 36-16AWG,different conductor size may be used in one cord
PP insulation
Max core wire size:20AWG ,Flat or round
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket(Halogen free material available) cable is either straight or spiral
Technical parameter:
Rated temperature : 60ºC
Rated Voltage: 300V
| Product Number | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200C) Ω/km |
||||||
| core | Size AWG | NO./mm | Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
Tape thick. mm |
Dia. of braid strand mm |
Nom. Thick. mm | Nom. Dia. mm |
||
| HT21007**101 | 3C | 28 | 7/0.127 | 0.38 | 0.26 | 0.80 | 0.025 | 0.10 | 0.80 | 3.80 | 223 |
| HT21007**102 | 3C | 26 | 7/0.16 | 0.48 | 0.26 | 0.90 | 0.025 | 0.10 | 0.80 | 4.04 | 140 |
| HT21007**103 | 3C | 24 | 11/0.16 | 0.60 | 0.26 | 1.12 | 0.025 | 0.10 | 0.80 | 4.51 | 87.6 |
| HT21007**104 | 3C | 22 | 17/0.16 | 0.76 | 0.26 | 1.30 | 0.025 | 0.10 | 0.80 | 4.90 | 55.4 |
| HT21007**105 | 6C | 28 | 7/0.127 | 0.38 | 0.26 | 0.80 | 0.025 | 0.12 | 0.80 | 4.70 | 223 |
| HT21007**106 | 6C | 26 | 7/0.16 | 0.48 | 0.26 | 0.90 | 0.025 | 0.12 | 1.00 | 5.30 | 140 |
| HT21007**107 | 6C | 24 | 11/0.16 | 0.60 | 0.26 | 1.12 | 0.025 | 0.12 | 1.00 | 6.00 | |
