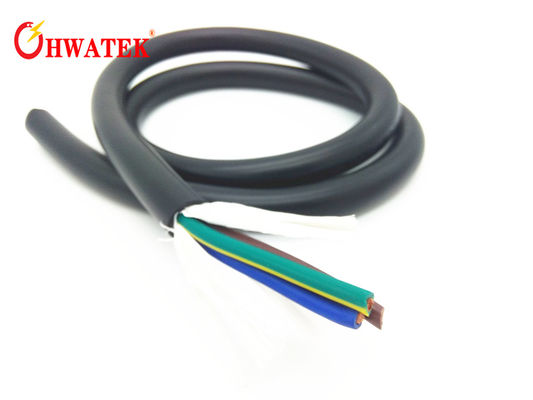

Industrial Control Braided Hook Up Wire Cable With PU Jacket UL20940
Basic Properties
Place of Origin:
China
Brand Name:
Hwatek
Certification:
UL,ROHS, REACH
Model Number:
UL
Trading Properties
Minimum Order Quantity:
3050M
Price:
Negotiable
Standard Packaging:
carton/pallet
Delivery Time:
2-3W
Payment Terms:
T/T
Supply Ability:
3000KM Per month
Product Summary
UL20940 Industrial Control Braided Hook-Up Wire Cable Application: For internal wiring of electronic equipment and appliance. Application standard: UL758&UL1581&CSA C22.2 No.210 Product character: Excellent insulation performance, stable chemical properties Pass UL VW-1 and CSA FT1 vertical flame ...
Product Details
Highlight:
Industrial Flexible Control Cable
,UL20940 Hook Up Wire Cable
,PU Jacket Flexible Control Cable
Application:
Products Are Used In Communication Equipment, Instruments, Industrial Control Systems, Electronic And Electrical Equipment.
Jacket:
PU
Insulation Material:
PVC, SR-PVC, PE Or PP
Conductor:
Tinned Or Bare Copper, Stranded Or Solid Conductor
Rated Voltage:
600V , 1000V
Rated Temperature:
80ºC
Product Description
UL20940 Industrial Control Braided Hook-Up Wire Cable
Application: For internal wiring of electronic equipment and appliance.
Application standard: UL758&UL1581&CSA C22.2 No.210
Product character:
Excellent insulation performance, stable chemical properties
Pass UL VW-1 and CSA FT1 vertical flame test
Heat resistance, anti-acid and environmental protection etc.
Constructure:
Tinned or bare copper, stranded or single conductor, 32-4/0AWG
PVC, SR-PVC, PE or PP insulation.
Two or more single-core wires is twisted into pair or cabling again
Tinned or bare copper wire, spiral or braid shield or Al-mylar wrapped shield
PU jacket(Halogen free material available)
Technical parameter:
Rated temperature : 80ºC
Rated Voltage: 600V , 1000V
| Product Number | Conductor | Insulation | Shield | Jacket | Max. Cond. Resistance (200C) Ω/km |
||||||
| core | Size AWG | NO./mm | Conductor Dia . mm |
Nom. Thickness mm |
Nom. Dia. mm |
Material | Coverage | Nom. Thick. mm | Nom. Dia. mm |
||
| HT20940**101 | 10C | 20 | 26/0.16 | 0.81 | 0.76 | 2.4 | Mylar | 80% | 0.76 | 8.40 | 35.2 |
| HT20940**102 | 7C | 18 | 41/0.16 | 1.02 | 0.76 | 2.7 | AL | 95% | 0.76 | 9.70 | 22.2 |
| HT20940**103 | 4C | 14 | 41/0.254 | 1.61 | 0.76 | 3.1 | Mylar | 75% | 0.76 | 9.50 | 8.78 |
| HT20940**104 | 3C | 12 | 65/0.254 | 2.03 | 0.76 | 3.6 | AL | 85% | 0.76 | 11.00 | 5.353 |
| HT20940**105 | 2C | 10 | 65/0.32 | 2.57 | 0.76 | 4.2 | AL | 85% | 0.76 | 10.50 | |
