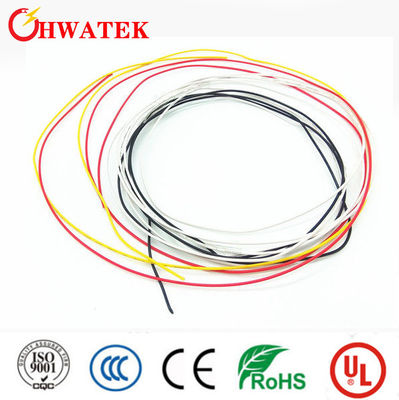

Display Port Consumer Electrical Hook Up Wire PE

Basic Properties
Place of Origin: China
Brand Name: Hwatek
Certification: ISO9001, UL, CCC, RoHS
Model Number: Electronics Hook up Wire
Trading Properties
Minimum Order Quantity: 10000M
Price: $0.5-1
Standard Packaging: Rolled in Reels, Packed in Pallets.
Delivery Time: 5-8 Weeks
Payment Terms: T/T
Supply Ability: 30KM/Day
Tags

single core insulated wire

single core copper wire

single core pvc insulated cable
Product Summary
Display Port Consumer Electronics Hook Up Wire PE Basic Info. Material Shape Round Wire Range of Application Medical Equipment Certification ISO9001, UL, CCC, RoHS Brand Hwatek Color Optional Qty/Roll 305m, 610m or as Request Transport Package Rolled in Reels, Packed in Pallets. Trademark Hwatek ...

Product Details

Highlight:

PE Single Core Flexible Cable

,

Medical Equipment Single Core Flexible Cable

,

PE Electrical Hook Up Wire
Conductor Material:: Copper
Insulation Material:: PE
Material Shape: Round Wire
Application: Medical Equipment
Color: Optional
Product Description

Display Port Consumer Electronics Hook Up Wire PE

Basic Info.

Material Shape
Round Wire
Range of Application
Medical Equipment
Certification
ISO9001, UL, CCC, RoHS
Brand
Hwatek
Color
Optional
Qty/Roll
305m, 610m or as Request
Transport Package
Rolled in Reels, Packed in Pallets.
Trademark
Hwatek
Origin
China
HS Code
8544492100

Product Description

Product Number Conductor Insulation Shield Jacket Max. Cond. Resistance
(200C)
Ω/km
Cores Size AWG NO.
mm		 Conductor
Dia .
mm		 Material Nom.
Dia.
mm		 Material Nom. Thickness
mm		 Nom. Dia.
mm
HTDP***001 5P 32 7/0.08 0.24 FHDPE 0.66 Al-Mylar Braiding 0.51 6.00 547
5C HDPE 0.50 0.51
HT-DP***002 5P 30 7/0.10 0.30 FHDPE 0.82 0.51 6.60 354
4C HDPE 0.55 0.51
HTDP***003 5P 28 7/0.127 0.38 FHDPE 0.95 0.51 7.80 223
4C HDPE 0.70 0.51

Application: Interconnection of PC and A/V devices
Application standard: UL758,UL1581,Display Port v.1.1
Product character:
Pass UL VW-1 and CSA FT1 vertical flame test

  • Under the condition of special high-temperature, products can keep excellent cable performance for long time and eliminate the hidden risk.

Constructure:
Stranded tinned conductor,32-24WG
Foam PE insulation
Shield : Al ,Mylar or braiding
FRPE jacket
Technical parameter:
Rated temperature :80ºC
Rated Voltage:30V
