UL Certificate 300V PVC Insulated Industrial Flexible Cable with 80ºC Rated Temperature and 10.3MPa Tensile Strength

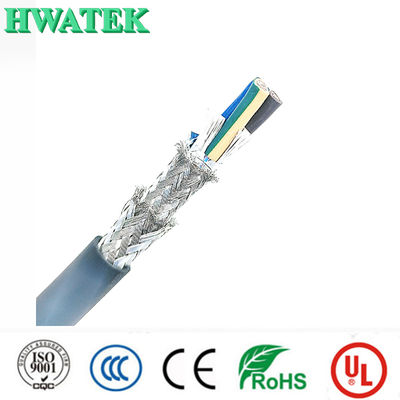

Large Image : UL Certificate 300V PVC Insulated Industrial Flexible Cable with 80ºC Rated Temperature and 10.3MPa Tensile Strength

Product Details:

Place of Origin:	China
Brand Name:	Hwatek
Certification:	ISO9001, UL, CCC, RoHS
Model Number:	UL2464

Payment & Shipping Terms:

Minimum Order Quantity:	305m,610m or as Request
Price:	$0.5-1
Packaging Details:	Rolled in Reels, Packed in Pallets.
Delivery Time:	5-8 Weeks
Payment Terms:	T/T
Supply Ability:	30KM/Day

Contact Now

Detailed Product Description

Material Shape:	Round Wire	Color:	Optional
Transport Package:	Rolled In Reels, Packed In Pallets.	Typ:	Insulated
HS Code:	8544492100
Highlight:	Industrial Flexible Cable Awm Style , PVC Jacket Industrial Flexible Cable , PVC Jacket 300V Cable

UL Certificate 300V PVC Insulated Industrial Flexible Cable

AWM Style 2464 300V VW-1 Wire Cable PVC Insulated and Jacket

ITEM	A:2P×22AWG	B:2C×14AWG
CONDUCTOR	Material	Tinned copper stranded
	Size	17/0.16mm	41/0.254mm
	O.D.(Ref)	0.76mm	1.88mm
INSULATION	Material	SR-PVC	PVC
	Min.average thickness	0.23mm	0.38mm
	Min.thickness at any point	0.18mm	0.33mm
	O.D.	1.30±0.05mm	2.80±0.15mm
TWISTED	O.D.(Ref)	2.60mm	/
CABLIGN1	Material	Al-mylar(foil face in)	/
CABLIGN1	Assembly	2P×22AWG+A	/
CABLIGN	Filler	PP rope
	Material	Non-woven
	Assembly	(2P×22AWG+A)+2C×14AWG+P
JACKET	Material	PVC(UV resistance)
	Min.average thickness	0.76mm
	Min.thickness at any point	0.61mm
	O.D.	10.00±0.30mm

Electrical Characteristics & Physical Properties

ELECTRICAL CHARACTERISTICS	PHYSICAL PROPERTIES
Rated voltage: 300V	Tensile strength: ≥10.3MPa
Rated temperature: 80ºC	Elongation: ≥100%
Max. DC conductor resistance(20ºC): A:59.4Ω/km B:8.96Ω/km	Aged condition: 113±1ºC×168h
Voltage withstand test: AC 2.0kV/1min	Percent of original tensile strength: ≥70%
	Percent of original elongation: ≥65%
