HWATEK WIRES AND CABLE CO.,LTD.
|
Product Details:
Payment & Shipping Terms:
|
| Material Shape: | Round Wire | Color: | Optional |
|---|---|---|---|
| Transport Package: | Rolled In Reels, Packed In Pallets. | Typ: | Insulated |
| HS Code: | 8544492100 | ||

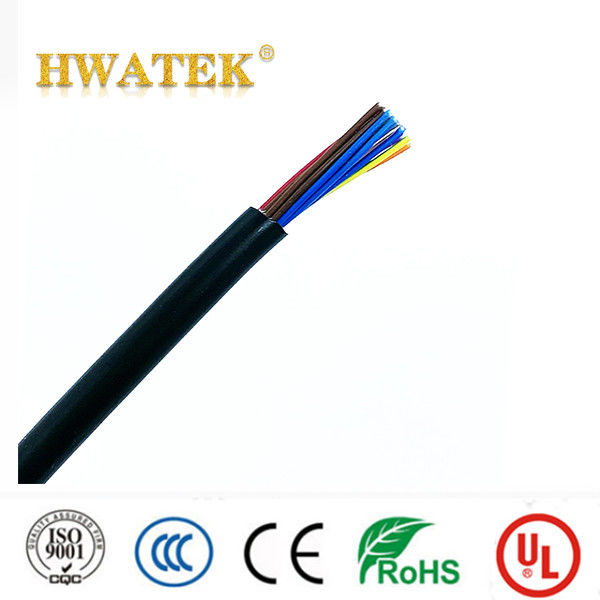

| High Light: | Industrial Flexible Cable 28AWG,Industrial Flexible Cable 26AWG,Industrial Cable HDPE Insulated |
||
| ITEM | A : 7C×26AWG | B: 10C×28AWG | |||
| CONDUCTOR | Material | Tinned copper stranded | |||
| Size | 26/0.08±0.008mm | 19/0.08±0.008mm | |||
| O.D.(Ref) | 0.48mm | 0.40mm | |||
| INSULATION | Material | HDPE | HDPE | ||
| Min.average thickness | 0.12mm | 0.10mm | |||
| Min.thickness at any point | 0.08mm | 0.06mm | |||
| O.D. | 0.75±0.05mm | 0.62±0.05mm | |||
| CABLING | Filler | Cotton | |||
| Material | Paper | ||||
| Assembly | 7C×26AWG+10C×28AWG | ||||
| JACKET | Material | PU (Halogen free 85A) | |||
| Min.average thickness | 0.76mm | ||||
| Min.thickness at any point | 0.61mm | ||||
| O.D. | 5.10±0.20mm | ||||
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES | ||||
| Rated voltage:30V | Tensile strength: | ≥10.3MPa | |||
| Rated temperature:-30~80ºC | Elongation: | ≥100% | |||
| Max. DC conductor resistance(20ºC): | Aged condition: | 113±1ºC×168h | |||
| A : 150Ω/km B: 239Ω/km | Percent of original tensile strength: | ≥70% | |||
| Voltage withstand test:AC 0.5kV/1min | Percent of original elongation: | ≥65% |
|||
