Product Details:
Payment & Shipping Terms:
|
| Material Shape: | Round Wire | Color: | Optional |
|---|---|---|---|
| Transport Package: | Rolled In Reels, Packed In Pallets. | Typ: | Insulated |
| HS Code: | 8544492100 | INSULATION: | PE/PVC |
| CABLING: | PP ROAD | BRAID: | Tinned Copper |
| JACKET: | Paper | ||

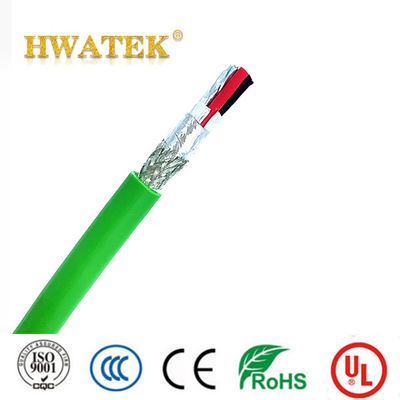

| High Light: | Industrial Flexible Cable Insulated,PVC Insulated Tinned Copper Cable,PE Insulated Industrial Flexible Cable |
||
| ITEM | A:2P×0.22mm2 | B:2C×2.5mm2 | |||||
| CONDUCTOR | Material | Tinned Copper Stranded | Tinned Copper Stranded | ||||
| Size | 7/0.20mm | 50/0.254mm | |||||
| O.D.(Ref) | 0.60mm | 2.07mm | |||||
| INSULATION | Material | PE | PVC | ||||
| Min.average thickness | 0.23mm | 0.33mm | |||||
| Min.thickness at any point | 0.18mm | 0.26mm | |||||
| O.D. | 1.15±0.10mm | 2.80±0.15mm | |||||
| TWISTED | O.D.(Ref) | 2.30mm | / | ||||
| CABLING-1 | Filler | Cotton(Optional) | / | ||||
| Material | Al-mylar | / | |||||
| CABLING | Filler | PP rope | |||||
| Material | Al-mylar(facing out) | ||||||
| BRAID | Material | Tinned Copper | |||||
| Size | 0.10mm (80% Min.) | ||||||
| JACKET | Material | Paper | |||||
| Material | PU(4766) | ||||||
| Nom.average thickness | 1.00mm | ||||||
| O.D. | 10.50±0.30mm | ||||||
| ELECTRICAL CHARACTERISTICS | PHYSICAL PROPERTIES | ||||||
| Rated Rated:150V | Tensile strength: | ≥10.3MPa | |||||
| Rated temperature:80ºC | Elongation: | ≥100% | |||||
| Max. DC conductor resistance(20ºC): | Aged condition: | 113±1ºC×168h | |||||
| A:94.2Ω/km B:8.96Ω/km | Percent of original tensile strength: | ≥70% | |||||
| Voltage withstand test:AC 0.5kV/1min | Percent of original elongation: | ≥65% | |||||
