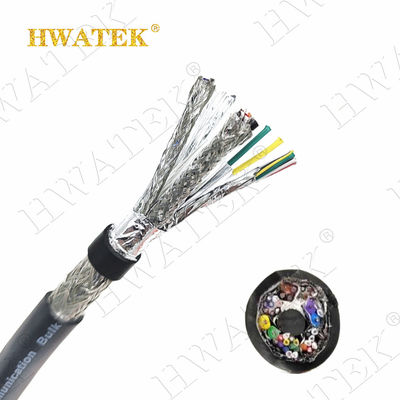

UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield

UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield
UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield

Large Image :  UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield

Product Details:
Place of Origin: China
Brand Name: Hwatek
Certification: UL, CE, RoHS, Reach
Model Number: UL2464
Payment & Shipping Terms:
Minimum Order Quantity: 1220m
Price: To be negotiated
Packaging Details: Packed in rolls or reels
Delivery Time: 3-6 Weeks
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 100km per day
Detailed Product Description
Conductor: Bare Copper, Tinned Copper, Silver Plated Copper Insulation: PVC, XLPE, TPE, PU Etc
Jacket: PVC, XLPE, TPE, PU Etc Cable Shape: Round
Application: Industrial, Comsumer Electrics, Medical, Etc Packing: Packed In Reels
Volatge: 300V Temperature: 80℃
High Light:

300V Flexible Electrical Cable

,

28AWG Electrical Flexible Cable

,

28 AWG Flexible Electrical Cable

300V Electrical Flexible Cable UL2464 5P×28AWG+AB Shield Cable

UL2464 5P×28AWG+AB Electrical Flexible Shield Cable

Product Description

Construction
Conductor Tinned copper stranded
Cross section 28AWG
Construction 7/0.127mm
Strand Dia. 0.38mm
Insulation PVC
Nom.Thickness 0.23mm
Min.Thickness 0.18mm
Insulation Dia. 1.00±0.05mm
Insulation colour 1.White&Brown 2.White&Red 3.Black&White 4.Orange&White 5.yellow&White
  Optional
Material AL-mylar(face out),≥25%
Braid Tinned copper 0.1mm ≥80%
Jacket PVC
Nom.Thickness 0.76mm
Min.Thickness 0.61mm
Outer Dia. 6.5±0.30mm
Colour Black



Construction
Conductor : stranded, tinned or bare copper
Insulation: PVC
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Shield or Braid: bare or tinned copper braid or Spiral and AL-mylar
Jacket: PVC

Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,

Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,

Technical data
Rated voltage:300V
Rated Temperature:-20ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil

Voltage withstand test:AC 2.0kV/1min

Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible



UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 0UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 1

UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 2





Company Profiles

Founded in 2004 with 9 million USD capital investment, our HQ factory in Kunshan covers 14980 square meters.
In 2020 we established our Nantong facility with 100 million RMB capital investment which covers 34000 square meters.
With ISO9001, ISO14001, IATF16949, ISO13485 system certificates, all of our products have passed CCC, UL, CUL, CE, CSA, ETL safety certificates. We are working with global customers in various fields through our well-established sales system based on the management principal HONESTY, INNOVATION and ENVIRONMENTAL PROTECTION.



Certificates
UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 3

Production Progress

UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 4

Shipping
UL2464 Flexible Electrical Cable 300V 5P X 28AWG + AB Shield 5

FAQ
1. Q:What can you supply?
A: We do produce consumer electronics wires, hock up wires, industrial cables, robot cables, ev charging cables, new/green energy cables.
2. Q: What are the certificates do you get?
A: We have UL, CE, 3C, Dekra, CQC, TUV, Rohs, Reach, ETL certificates.
3. Q:Can we get samples before ordering?
A:
Yes, we are willing to arrange samples for you.
4. Q: What's your lead time?
A: Normally we can finish you orders in 2-3 weeks, and 5-6 weeks in peak season.
5. Q. How can you guarantee the product quality?
A: Always a pre-production sample before mass production and final Inspection before shipment.
