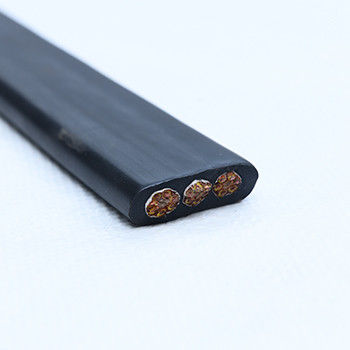

Flat IDC Cable For 20-1075 BK199 Data AWM20549 4C 18AWG 2C 16AWG
Product Details
PVC Insulation IDC Cable
,Flat IDC Cable
,AWM 20549
IDC cable for 20-1075 BK199 Data AWM20549 4C×18AWG+2C×16AWG+2P×24AWG Flat cable
Product Description
| Construction | ||||
| Conductor | Bare copper stranded | |||
| Cross section | A:2P×24AWG | B:2C×16AWG | C:4C×18AWG | |
| Construction | 19/0.127mm | 26/0.254mm | 19/0.254mm | |
| Strand Dia.(Ref.) | 0.64mm | 1.49mm | 1.27mm | |
| Insulation | PVC | PVC | PVC | |
| Nom.Thickness | 0.23mm | 0.38mm | 0.23mm | |
| Min.Thickness | 0.18mm | 0.33mm | 0.18mm | |
| Insulation Dia. | 1.15±0.08mm | 2.30±0.10mm | 1.80±0.10mm | |
| Insulation colour | A1.white &blue A2.brown&green |
B1.green&yellow B2.green&yellow |
C1.red C2.blue C3.red C4.blue |
|
| Twisted(Ref.) | 2.30mm | / | / | |
| Assembly | 4C×18AWG+2C×16AWG+2P×24AWG | |||
| Jacket | TPU | |||
| Nom.Thickness | 0.92mm | |||
| Min.Thickness | 0.74mm | |||
| Outer Dia. | H×L:(4.40±0.50)×(19.00±1.00)mm | |||
| Colour | Per request | |||
Construction
Conductor : stranded, tinned or bare copper
Insulation: PVC
black cores with continuous white numbering (also available in other colours on request)
GN-YE conductor, 3 cores and above in the outer layer
Jacket: PVC
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:300V
Rated Temperature:-20ºC-80ºC
Flame: VW-1, FT1, FT2
Oil resistance: 60 ºC or 80 ºC Oil
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
Max.conductor DC resistance(20℃) A:87.6Ω/km,B:13.7Ω/km,C:21.8Ω/km
