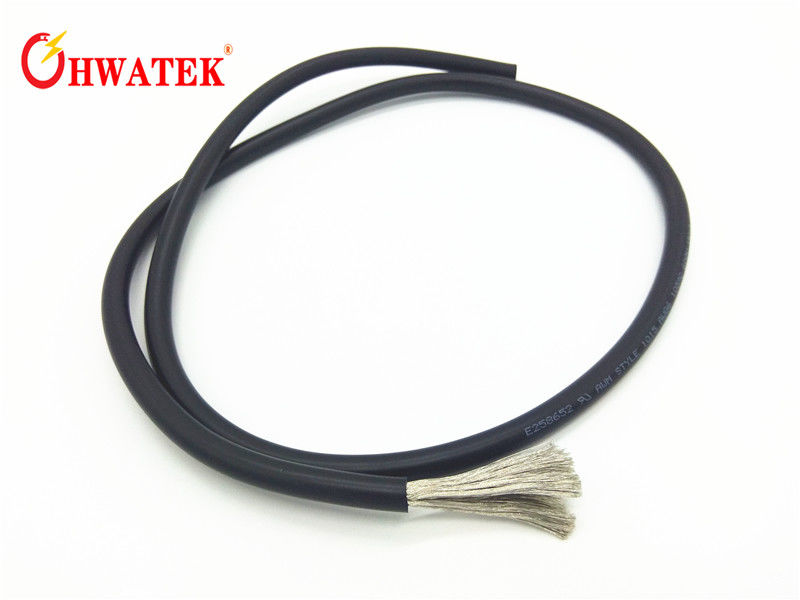

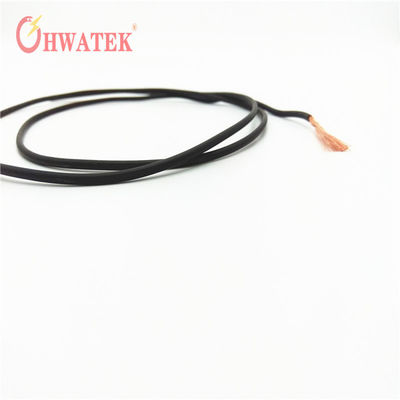

UL3271 6AWG 1050 / 0.127T XLPE Insulated Wire Halogen Free
Basic Properties
Place of Origin:
China
Brand Name:
Hwatek
Certification:
ISO9001, UL, CCC, RoHS
Model Number:
UL3271
Trading Properties
Minimum Order Quantity:
305m,610m or as Request
Price:
$0.2-1
Standard Packaging:
Rolled in Reels, Packed in Pallets.
Delivery Time:
4-5 Weeks
Payment Terms:
T/T
Supply Ability:
30KM/Day
Product Summary
UL3271 6AWG(1050/0.127T) Tinned Copper stranded XLPE Halogen free Insulated Wire Product Description Product Description Characteristics Jacket Tensile strengt >=10.3Mpa Elongation before Aging >=150% Aging Condition 136±1℃×168h Percent of original tensile strength >=70%of original Percent of ...
Product Details
Highlight:
Halogen Free XLPE Cable Insulation
,Halogen Free XLPE Insulated Wire
,6AWG XLPE Insulated Wire
Material Shape:
Round Wire
Color:
Optional
Transport Package:
Rolled In Reels, Packed In Pallets.
Typ:
Insulated
HS Code:
8544492100
Product Description
UL3271 6AWG(1050/0.127T) Tinned Copper stranded XLPE Halogen free Insulated Wire
Product Description
Product Description
| Characteristics | Jacket |
| Tensile strengt | >=10.3Mpa |
| Elongation before Aging | >=150% |
| Aging Condition | 136±1℃×168h |
| Percent of original tensile strength | >=70%of original |
| Percent of original elongation | >=45%of original |
| Max. Conductor DC Resistance(20ºC) | 1.403Ω/km |
| Voltage Withstand Test(kV/min) | 2.0kV/1min |
| Rated Temperature | 125℃ |
| Rated Voltage | 600V |
| Flame test | FT2 |
| Insulation Extrusion | Core |
| Conductor AWG | 6AWG(1050/0.127T) |
| Conductor Dia. Nom. | 1050/0.127±0.008mm |
| Primary Number | 1050 |
| Insulator | XL-PE |
| Primary O. D. | 8.00±0.25mm |
| Nom.Thickness | 1.14mm |
| Min. Thickness | 1.02mm |
| Primary Color Code | Per request |
| Twisted O.D. | 5.4mm |
Construction
Conductor : stranded, tinned or bare copper
Insulation: XLPE
Application
These cables are appropriate for flexible use with medium mechanical stresses, and free movement without tensile stress or forced movements in dry, moist and wet rooms but not open air. Suitable to be used as measuring and control cables in tool machines,
Standards
International: UL758 , UL1581, UL2556
RoHS,REACH Compliant,
Technical data
Rated voltage:600V
Rated Temperature:125℃
Flame: VW-1, FT1
Voltage withstand test:AC 2.0kV/1min
Properties
Effectively resist electromaganetic interference
Excellent insulation performance
Extensively oil resistant
Flexible
